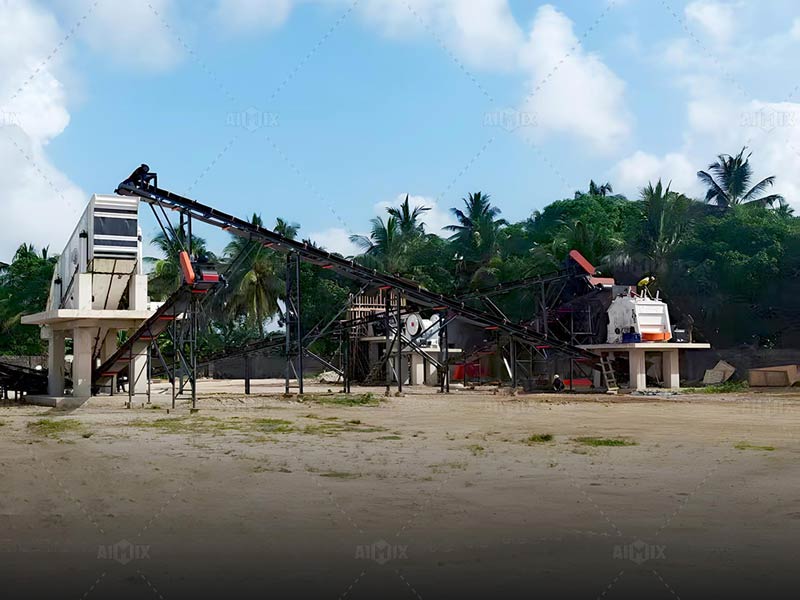

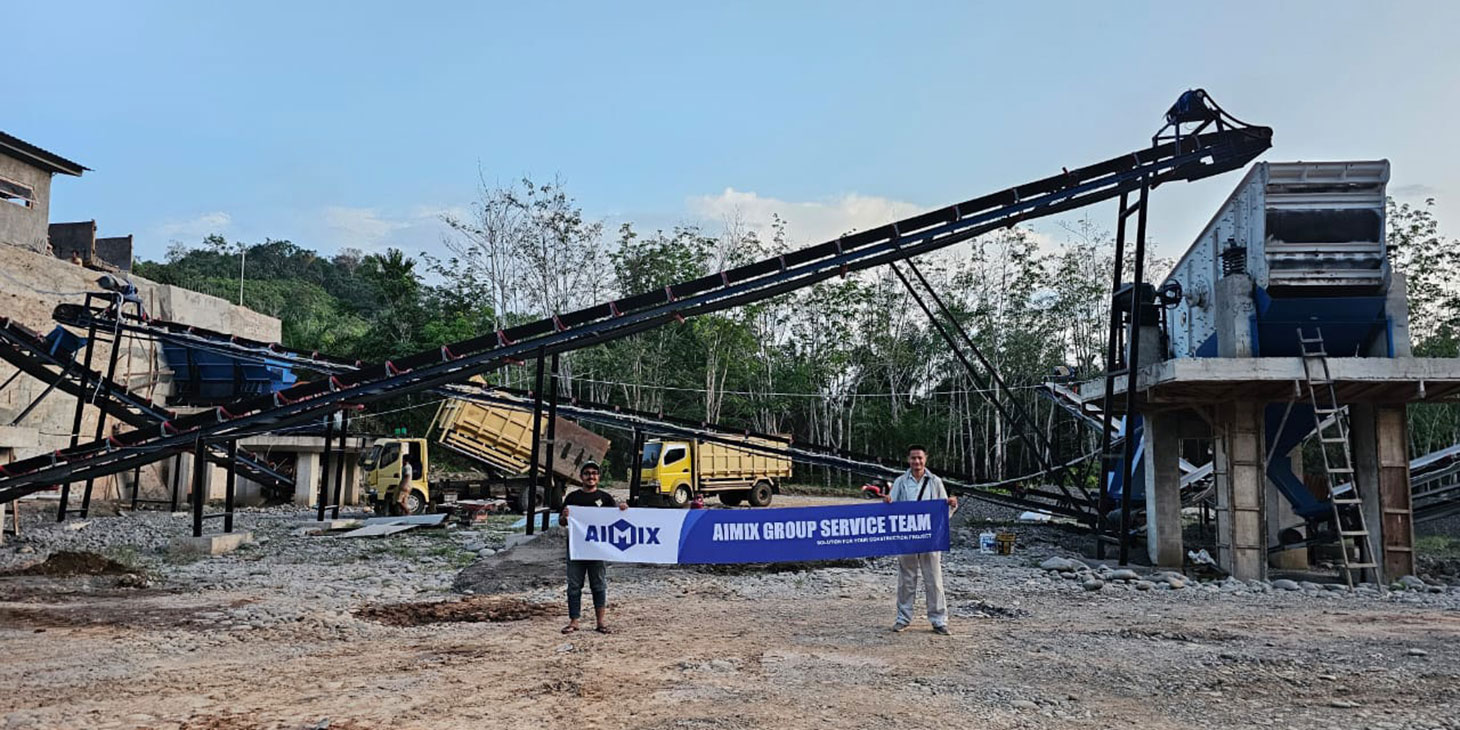

Site Layout for Aggregate Crushing: Improving Flow to Reduce Bottlenecks

Author name

A bottleneck is not a failure of machinery. It is a failure of geometry. Aggregate crushing plants routinely operate at 60-70% of their theoretical capacity not because the crusher is undersized, but because material cannot reach the crusher fast enough—or leave it quickly enough. The layout of the site determines flow. Flow determines throughput. Throughput determines profit. This investigation examines how material handling, stockpile positioning, and equipment spacing create or eliminate bottlenecks. Contractors who master these spatial relationships can increase production by 30% without purchasing a single new component. Those who ignore them will watch loaders idle, conveyors starve, and crushers cycle empty.

Primary Feeding: The Hopper and Loader Interface

The bottleneck begins at the hopper. A wheel loader deposits quarry-run material into the crusher's receiving hopper. The loader's cycle time—dig, travel, dump, return—sets the maximum feed rate. If the hopper empties before the loader returns, the crusher runs dry. Dry running wastes energy and accelerates jaw plate wear through metal-on-metal contact. The solution is surge capacity: a hopper that holds five to seven minutes of crusher feed at full rated capacity. For a 300 ton-per-hour crusher, that requires a hopper volume of 25 to 35 tons. Many portable crusher plant ship with hoppers half that size, forcing the loader to work in sprint intervals. Operators compensate by oversizing the loader, which increases fuel consumption and tire wear.

Loader Travel Path Optimization

The distance between the stockpile and the hopper determines loader cycle time. Every 10 meters of travel adds approximately 12 seconds to the round trip. At 300 tons per hour, a 20-meter travel distance reduces effective feed rate by 15% compared to a 5-meter distance. Contractors should position the feed stockpile directly adjacent to the hopper, ideally on the loader's blind side to minimize turning radius. The loader should travel in a straight line, dump, and reverse straight back. Any turn in the path introduces delay and increases spillage risk. Site layouts that force a 90-degree turn at the hopper reduce throughput by 25% solely from lost momentum.

Hopper Geometry and Bridging Prevention

A hopper that feeds unevenly creates a bottleneck invisible to the operator. Wedge-shaped hoppers with steep side walls (60 degrees or greater) promote mass flow, where material slides uniformly toward the aggregate crusher. Shallow hoppers with 45-degree walls encourage funnel flow, where material moves only above the discharge opening. Funnel flow causes bridging: large rocks lock together above the opening, stopping all feed. Clearing a bridge requires a worker with a pry bar—a dangerous task that halts production for 10 to 20 minutes. Contractors should specify hoppers with at least 60-degree walls and a rectangular opening rather than a square one. Rectangular openings bridge less frequently because the longer dimension prevents arch formation.

Conveyor Transfer Points: The Hidden Flow Restrictors

Material moves from crusher to screen to stockpile via conveyors. Each transfer point—where material drops from one belt to another—presents a flow restriction. The bottleneck mechanism is impact. Material accelerates as it falls, striking the receiving belt with force that displaces idlers and accelerates belt wear. But the more insidious restriction is spillage. Poorly designed transfer chutes allow material to escape the belt, accumulating beneath the conveyor. Cleanup crews remove spillage, but during production, spilled material reduces the effective cross-section of the receiving belt, lowering capacity by 10-20%.

Chute Angle and Material Trajectory

The chute that guides material from the crusher discharge to the main conveyor must maintain a minimum slope of 55 degrees for crushed aggregate. Shallower slopes allow material to stick, build up, and eventually choke the chute. Choke conditions reduce flow to zero. Operators then climb the structure to clear the jam—another dangerous stop-work event. Contractors should verify that transfer chutes use high-density polyethylene liners rather than steel. HDPE has a lower coefficient of friction, allowing material to slide even at 50-degree slopes. The material also includes rock boxes: pockets where material accumulates to protect the chute from impact wear. Rock boxes work well for coarse aggregate but trap fines, creating buildup over time. A clean chute with HDPE liners and no rock box outperforms a steel chute with a rock box in high-fines applications.

Belt Speed and Skirt Board Sealing

Conveyor belts are rated for specific material flow rates based on belt width and speed. A 36-inch belt at 400 feet per minute carries approximately 400 tons per hour of crushed aggregate at 100 pounds per cubic foot bulk density. Increasing belt speed to 500 feet per minute raises capacity to 500 tons per hour but increases spillage at the loading zone unless skirt boards are extended. Skirt boards are rubber seals that contain material on the belt as it accelerates. Standard skirt length is three feet. For high-speed belts, five-foot skirts are necessary to allow material to settle before reaching the transition idlers. Contractors who upgrade belt speed without extending skirts will experience spillage that eventually buries the return idlers, shutting down the conveyor entirely.

Stockpile Management: The Outbound Constraint

The crusher cannot discharge if the stockpile has consumed all available space. This sounds obvious, yet site layouts routinely place stockpiles too close to the discharge conveyor. A radial stacker—a conveyor that pivots to create a circular stockpile—requires a radius of at least 50 feet to produce a 10-foot-high pile. Shorter radii produce steep, unstable piles that avalanche. Avalanching buries the stacker's tail pulley, requiring excavation to restore operation. Contractors must calculate stockpile volume requirements before positioning equipment. A week of production at 300 tons per day creates 1,500 tons of aggregate. At 100 pounds per cubic foot, that volume occupies 30,000 cubic feet—approximately a 50-foot diameter pile 15 feet high. The stacker needs room to grow that pile without crowding the crusher maintenance access.

Reclaim Tunnel Access versus Front-End Loader Retrieval

Stockpile retrieval methods affect layout. Front-end loaders work from the toe of the pile, loading trucks or feeding a wash plant. This method requires a hardstand area in front of the pile large enough for the loader to maneuver. A loader with a 10-foot turning radius needs 20 feet of clearance. Reclaim tunnels—underground conveyors that draw material from the bottom of the pile—eliminate the need for loaders but require a different geometry. The pile must sit directly above the tunnel, limiting the stacker's ability to create a circular pile. Linear piles over tunnels require traveling stackers that move along the pile length. Traveling stackers cost three times more than radial stackers but allow higher stockpile volumes on constrained sites.

Sequential versus Simultaneous Stockpiling

Multiple product sizes—3/4-inch minus, 1 1/2-inch minus, and crusher fines—require separate stockpiles. A single radial stacker cannot serve multiple piles without a diverter or a mobile transfer conveyor. The bottleneck becomes changeover time. Switching from one product to another requires stopping the crusher machine for sale, repositioning the stacker, and restarting. Each changeover consumes 30 to 60 minutes of lost production. Contractors processing three products per day lose up to three hours daily to changeovers. The solution is a tripper conveyor: a belt that travels along a track and discharges into multiple fixed bins. Tripper conveyors cost $150,000 to $300,000 but eliminate changeover time entirely. For high-volume producers, the capital cost recoups within one year through recovered production hours.

Layout as a Competitive Advantage

The difference between a 200-ton-per-hour plant and a 280-ton-per-hour plant is rarely the crusher. It is the layout. Feed hopper placement, loader travel distance, chute angles, belt speeds, skirt board lengths, stockpile radii, and retrieval methods each contribute measurable flow restrictions. Contractors who map these variables, measure actual throughput against theoretical capacity, and adjust their geometry will see bottlenecks dissolve. Those who accept congestion as inevitable will watch their competitors produce more from identical equipment. Aggregate crushing is a physics problem before it is an engineering problem. The solution begins on the ground.

From Rock to Aggregate: A Step-by-Step Look at Crushing Technology

The transformation of large, heterogeneous rock masses into standardized, specification-grade aggregates is a process governed by a defined sequence of mechanical interventions. It is not a singular act of crushing but a systematic disassembly, a calibrated deconstruction of raw geology into engineered material. Each stage in this continuum serves a distinct purpose, utilizing specific stone crusher machinery to apply calculated forces that progressively reduce particle size while simultaneously shaping and classifying the output. The efficacy of the entire operation hinges on the correct selection and synchronization of these stages, where the output of one machine becomes the optimized feed for the next. This analysis delineates the technological progression from primary fragmentation to final product certification.

Primary Reduction: The Coarse Breakage and Scalping Imperative

The process commences with primary crushing, which addresses the raw feed material, often measuring up to a meter or more in diameter. The objective here is not finesse, but the efficient application of colossal force to induce initial fracture. Jaw crushers and gyratory crushers are the dominant technologies in this domain. A jaw crusher operates on a compressive principle, where a fixed jaw and a reciprocating movable jaw create a V-shaped chamber, progressively reducing material by squeezing it until it breaks. A gyratory crusher utilizes a similar compressive action but with a conical head gyrating within a concave bowl, offering higher capacity for very large-scale operations. Preceding or integrated with this stage is the critical function of scalping. A vibrating grizzly feeder or scalping screen removes undersized material and deleterious fines—clay, dirt, and small rock—from the feed before it enters the primary crusher. This prevents crusher packing, reduces unnecessary wear, and improves overall circuit efficiency by directing already-sized material around the primary crushing stage.

Secondary Refinement: Shaping the Particle and Modulating the Gradation

Material discharged from the primary crusher, now typically less than 200-250mm, proceeds to the secondary crushing stage. The operational focus shifts from pure size reduction to particle shaping and gradation control. Cone crushers and impact crushers are the principal technologies deployed here. A cone crusher, akin to a refined gyratory, further compresses rock between a rotating mantle and a stationary concave. It is exceptional at producing a well-graded, cubical product with a controlled particle size distribution, making it ideal for high-quality aggregate production. An mobile impact crusher for sale, conversely, utilizes high-speed rotors and impact aprons or hammers to shatter rock through kinetic energy. This results in a higher proportion of fractures along natural cleavage planes, which can produce a more angular product. The selection between cone and impact technology is often dictated by the desired product shape and the abrasiveness of the parent rock.

Tertiary Precision and Sand Manufacture: Achieving Specification

For applications demanding exceptionally tight tolerances or the production of manufactured sand (M-Sand), a tertiary crushing stage is employed. This stage receives material from the secondary crushers for final reduction and shaping. Often, vertical shaft impact (VSI) crushers are utilized here. A VSI crusher(sand making machine) accelerates rock within a rotor and hurls it against a stationary anvil ring or a rock shelf, creating a high-velocity impact that results in intensive fracturing. This action is exceptionally effective at producing a cubical product and generating sand-sized particles from the crusher's natural attrition. The tertiary stage is where the final product specifications—particularly for critical parameters like the flakiness index and the fineness modulus of sand—are dialed in with precision. The closed-side setting (CSS) of the crusher is minutely adjusted to achieve the target top size.

The Integrated Circuit: Screening, Recirculation, and Automation

The crushing stages do not operate in isolation; they are integrated into a continuous circuit by screening and conveying technology. Vibrating screens are the decision-making nodes of the plant. After each crushing stage, the entire output is passed over screens with meshes corresponding to desired product sizes. On-size material is diverted to product stockpiles. Oversize material is recirculated via conveyors back to the appropriate crusher for further reduction—this is the closed-circuit operation fundamental to modern aggregate plants. Fines, or sand, are also screened out for further processing or classification. Modern plants are governed by programmable logic controllers (PLCs) that automate this material flow, monitor crusher loads and settings, and optimize the entire system for throughput and product consistency. This integrated circuit, from primary scalping to final screening, represents a synchronized mechanical system designed to render random rock into a predictable, engineered commodity.

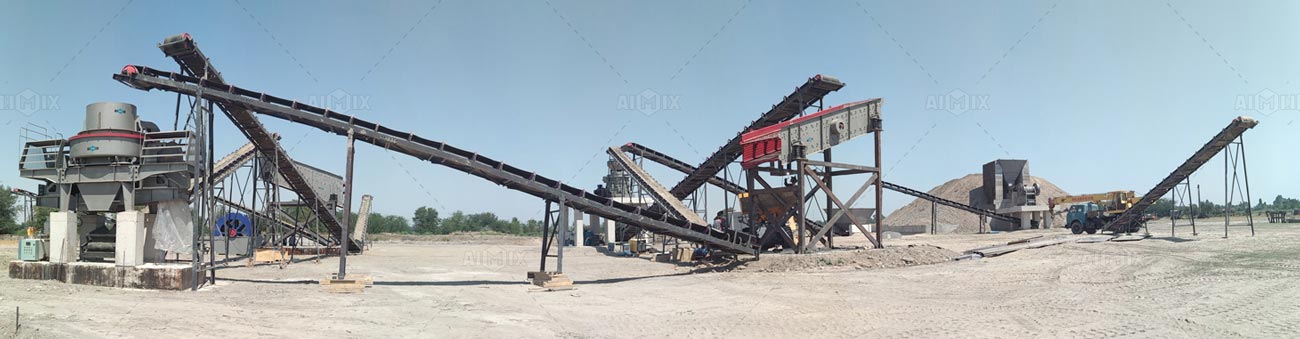

Understanding Crushing Costs: The Influence of Equipment Pricing on Overall Spending

The crushing industry operates within a complex economic framework where plant pricing serves as a fundamental determinant of operational viability and competitive positioning. The capital investment in crushing plant equipment establishes the financial foundation upon which all subsequent operational decisions and profitability calculations are based. A comprehensive evaluation of crushing plant costs extends beyond simple acquisition figures to encompass the intricate relationship between initial capital outlay, operational expenditures, and long-term return on investment. The pricing structure of these industrial assets reflects a sophisticated synthesis of engineering complexity, manufacturing economics, and market dynamics. Understanding this cost architecture is essential for stakeholders seeking to optimize their capital allocation and achieve sustainable competitive advantage in the highly competitive aggregates production sector.

Capital Investment and Equipment Configuration Economics

The initial capital outlay for a crushing plant represents a significant financial commitment that varies dramatically based on plant configuration, production capacity, and technological sophistication. Basic stationary crushing plants with single-stage crushing and minimal automation may range from $150,000 to $500,000, while advanced multi-stage plants with integrated screening, material handling, and sophisticated control systems can exceed $2,000,000. The selection of crusher types—jaw, cone, impact, or vertical shaft—directly influences both the initial cost and the operational capabilities of the plant. Each crusher type carries distinct price points based on its engineering complexity, material requirements, and production capacity. Cone crushers, with their precision engineering and ability to produce finely graded aggregates, typically command a 20-40% premium over equivalent-capacity jaw crushers. The integration of secondary and tertiary crushing stages increases the plant's versatility and product quality but adds 30-60% to the base equipment cost, creating a tiered pricing structure that aligns with specific market requirements and production objectives.

The economic implications of plant configuration extend to material handling systems, which constitute 20-35% of the total plant cost. The selection between fixed conveyors, mobile stackers, and radial conveyors involves trade-offs between initial investment and operational flexibility. Advanced automation and control systems, representing 8-15% of the total plant cost, provide substantial returns through improved operational efficiency, reduced labor requirements, and enhanced product consistency. The decision to invest in these premium features must be evaluated against the specific production requirements, market demands, and long-term business strategy. The capital investment in a crushing plant is therefore not a simple purchase but a strategic decision that establishes the operational capabilities and economic potential of the aggregate production operation for years to come. The configuration choices made during the procurement phase fundamentally shape the plant's ability to compete effectively in specific market segments and achieve optimal return on investment.

Operational Expenditure and Lifecycle Cost Analysis

The true economic impact of crushing plant price emerges when analyzed through the comprehensive framework of total lifecycle costs. Operational expenditures, including energy consumption, wear parts replacement, and maintenance, typically constitute 60-80% of the total cost of ownership over a plant's operational lifespan. Energy consumption represents the single largest operational cost component, with modern plants consuming 0.3-0.8 kWh per ton of processed material. The selection of energy-efficient motors, variable frequency drives, and optimized crushing chambers can reduce energy consumption by 15-30%, creating substantial operational savings that offset higher initial equipment costs. Wear parts consumption, including crusher liners, blow bars, and screen media, represents another significant operational cost that varies based on material abrasiveness, crusher type, and operational practices. Advanced materials, such as ceramic composite liners, can extend service life by 50-100% but command price premiums of 30-60% over conventional manganese steel, creating a complex economic calculation that balances initial parts cost against replacement frequency and associated downtime.

Maintenance costs and equipment reliability form the third critical component of the operational expenditure analysis. Plants with advanced monitoring systems, automated lubrication, and predictive maintenance capabilities can reduce unplanned downtime by 40-60%, significantly impacting overall operational efficiency and profitability. The economic value of reliability becomes particularly apparent when calculating the cost of production interruptions, which can exceed $5,000 per hour for large-scale operations. The lifecycle cost analysis must also account for the equipment's residual value, with well-maintained premium plants retaining 40-60% of their original value after 5-7 years of operation, compared to 20-40% for basic configurations. This comprehensive evaluation of operational expenditures, maintenance requirements, and residual value provides a more accurate assessment of the true economic impact of crushing plant pricing than the initial capital investment alone. The integration of these lifecycle cost considerations into the procurement decision-making process enables more informed capital allocation and long-term strategic planning.

Market Dynamics and Strategic Investment Decisions

The pricing of crushing plants is influenced by a complex set of market dynamics that extend beyond simple manufacturing costs to encompass global supply chain factors, competitive pressures, and technological advancement. The industry is characterized by significant price stratification, with premium European and North American manufacturers commanding 30-50% price premiums over Asian competitors for comparable equipment specifications. This price differential reflects not only manufacturing costs but also brand reputation, engineering expertise, and after-sales support infrastructure. Market competition has intensified with the entry of new manufacturers offering technologically advanced equipment at increasingly competitive price points, creating downward pressure on prices across all market segments. The globalization of the crushing equipment supply chain has also influenced pricing, with manufacturers leveraging cost advantages in different regions to offer more competitive pricing while maintaining quality standards.

Strategic investment decisions regarding stone crushing plant procurement must consider the interplay between equipment pricing, market conditions, and long-term business objectives. The selection of plant capacity and configuration should align with market demand projections, with overcapacity leading to underutilization and reduced return on investment, while undercapacity limits revenue potential and market responsiveness. The timing of equipment acquisition can significantly impact the total investment, with market cycles, currency fluctuations, and stone crusher plant manufacturer pricing strategies creating opportunities for strategic procurement. The decision to invest in advanced automation and digitalization technologies must be evaluated against their potential to enhance operational efficiency, reduce labor costs, and improve product quality. These strategic considerations transform the crushing plant procurement decision from a simple capital expenditure to a comprehensive business strategy that directly influences the company's competitive positioning and long-term profitability. The ability to accurately evaluate crushing plant pricing within this broader strategic context is essential for making informed investment decisions that maximize return on investment and support sustainable business growth.

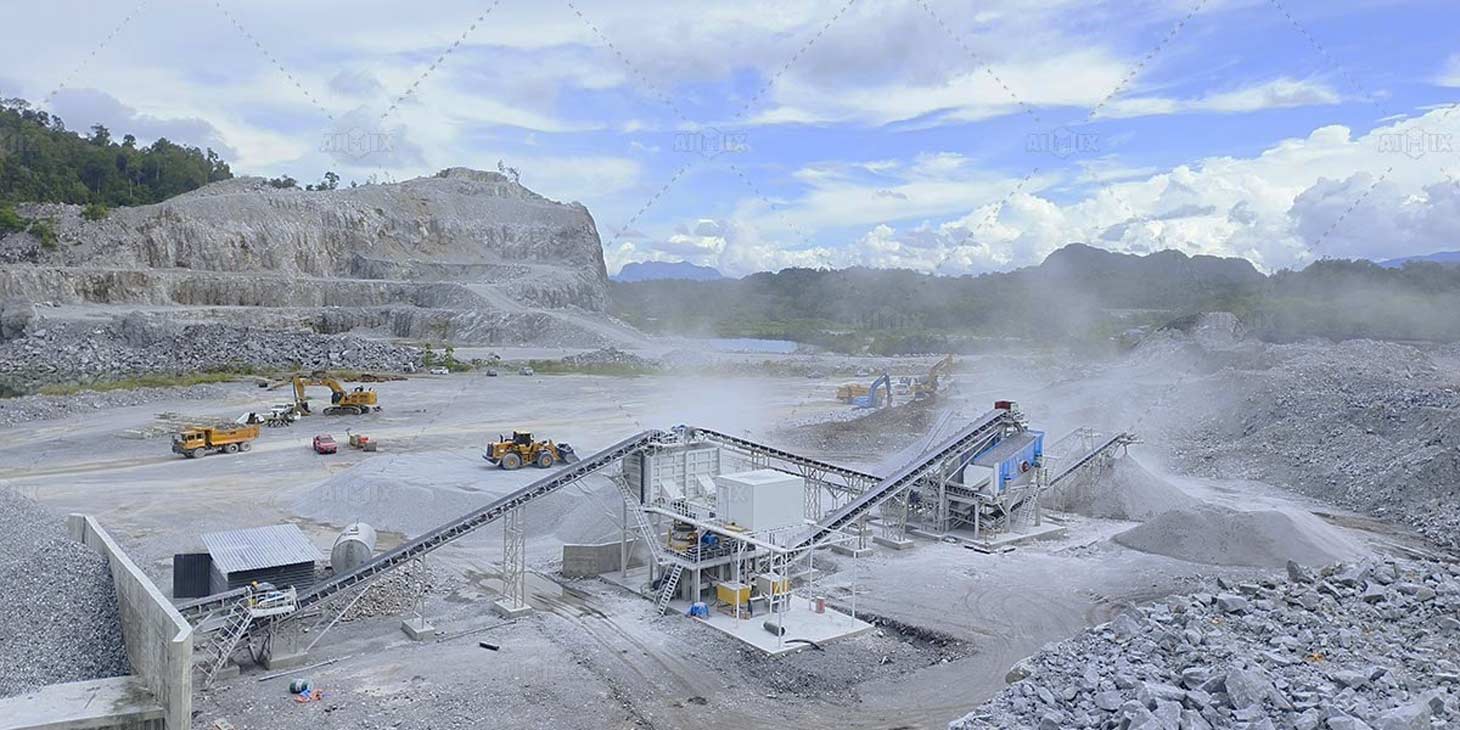

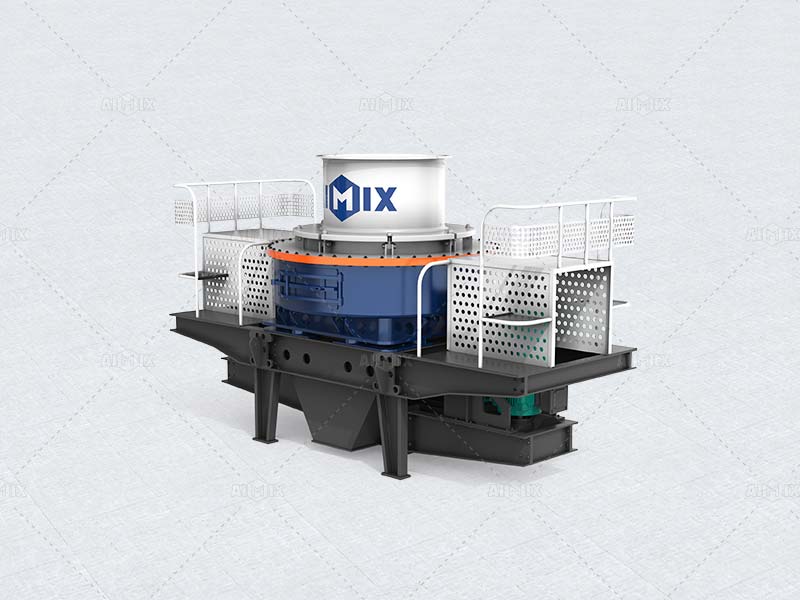

 Optimizing Sand Production: Best Practices for Using Sand Making Machines

The production of high-quality manufactured sand (M-Sand) is a precise industrial process, far removed from the simple crushing of aggregate. Sand making machines, typically Vertical Shaft Impactors (VSIs) or high-speed cone crushers, are engineered to impart specific fracture characteristics to create a cubical, well-graded product. However, their efficiency and output quality are not inherent; they are the direct result of meticulously applied operational protocols. Optimizing sand production requires a holistic approach that begins with stringent control of input material, extends through the precise calibration of the machine itself, and is sustained by integrated process control and vigilant quality assurance. Neglecting any of these interconnected domains leads to subpar yield, excessive wear, and a product that fails to meet the stringent specifications required for modern concrete and asphalt.

Strategic Feed Management: The Foundation of Optimal Output

The optimization process commences before material ever enters the crushing chamber. The characteristics of the feed material are the most significant variable influencing the performance of a sand making machine. Consistent, optimal feed is non-negotiable. First, feed size must be rigorously controlled. Over-sized feed, typically material larger than the recommended top size for the machine’s rotor or feed tube, causes catastrophic impact, leading to accelerated wear, unbalanced vibration, and potential mechanical failure. A well-designed preceding crushing and screening circuit is essential to ensure the feed consistently falls within the manufacturer’s specified gradation band.

Furthermore, the moisture content of the feed presents a critical operational parameter. Excessively wet, sticky feed will adhere to the feed hopper, choke the crushing chamber, and dramatically reduce throughput by clogging the machine and ancillary screens. Conversely, very dry feed can lead to excessive dust generation, presenting environmental and health challenges. Implementing basic stockpile management—covering fine material to control moisture—and potentially integrating a simple scalping screen to remove sticky fines can resolve these issues. Finally, the feed rate must be precisely regulated. Flood-feeding the machine overwhelms the crushing chamber, hindering the autogenous rock-on-rock action that creates cubical particles and leads to poor shape. A starved feed results in inefficient use of energy and increased wear on components as the rotor impacts an incomplete rock bed. A consistent, metered feed rate, often controlled by an automated feeder linked to the stone crusher machine’s power draw, is fundamental to achieving stable, optimized production.

Machine Configuration and Operational Parameters for Peak Performance

Once feed is optimized, attention turns to the machine’s internal configuration and operational settings. For Vertical Shaft Impactors, the rotor tip speed is a paramount variable. A higher tip speed increases the energy of impact, generally producing finer material and a higher percentage of microfines. A lower tip speed favors the production of coarser, well-shaped sand. The optimal speed is a function of the feed material’s abrasiveness and the target product gradation, and it requires careful calibration. Similarly, the configuration of the internal cascading chambers and anvil rings dictates the crushing action. Adjusting the cascade gates controls the flow of material within the rotor, influencing retention time and the intensity of the rock-on-rock fracturing process.

Concurrently, a proactive wear management strategy is integral to maintaining performance. The wear parts—rotor tips, anvils, and feed tubes—are consumables. However, their wear state directly affects product gradation and machine efficiency. As tips wear, the rotor’s effective diameter decreases, lowering tip speed and coarsening the product. Implementing a scheduled rotation and replacement program for wear parts, based on monitored production tonnage rather than visible wear, prevents gradual performance degradation. The goal is to maintain consistent crusher geometry, thereby ensuring a consistent product output over time, which is far more valuable than extracting the absolute last hour of service from a worn component.

Process Integration and Quality Assurance Systems

A sand making machine does not operate in isolation; it is the core component of a processing circuit. True optimization is achieved through systemic integration. The most effective configuration is a closed-circuit system. The rock crushing machine’s discharge is fed to a sizing screen. On-spec sand is sent to the product stockpile, while oversize material is recirculated back to the crusher feed. This closed loop allows for precise control over the top size of the final product. The selection of screen mesh sizes is critical and must be aligned with the target product specification, such as the zone II gradation for concrete sand.

Integrating a washing and classification stage, such as a sand screw or hydrocyclone, is often necessary to produce premium specification sand. This step removes unwanted clay, silt, and microfines, reducing the deleterious content and improving the final product's value. Finally, optimization is sustained by data. Implementing basic real-time monitoring of power consumption, vibration levels, and production tonnage provides early warning of feed issues or mechanical problems. Regularly sampling the final product for sieve analysis provides the essential feedback loop. By correlating changes in product gradation with operational adjustments—feed rate, rotor speed, screen configuration—operators can move from reactive troubleshooting to predictive, data-driven optimization. This systematic approach transforms the sand making process from a black box into a calibrated instrument, maximizing both the quantity and marketable quality of its output.

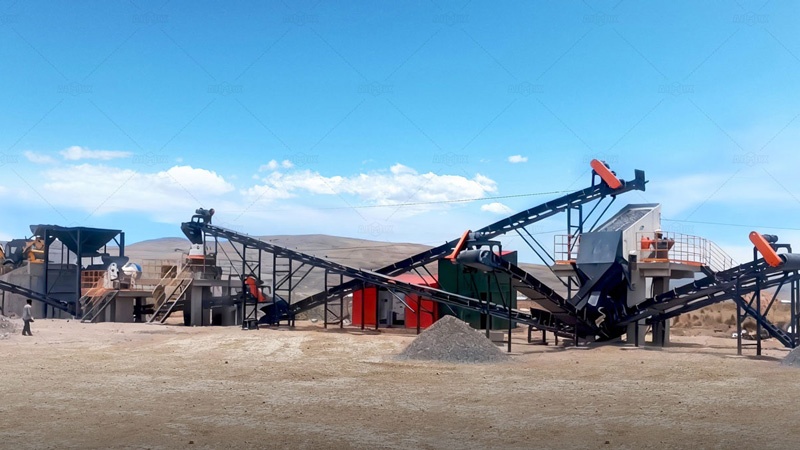

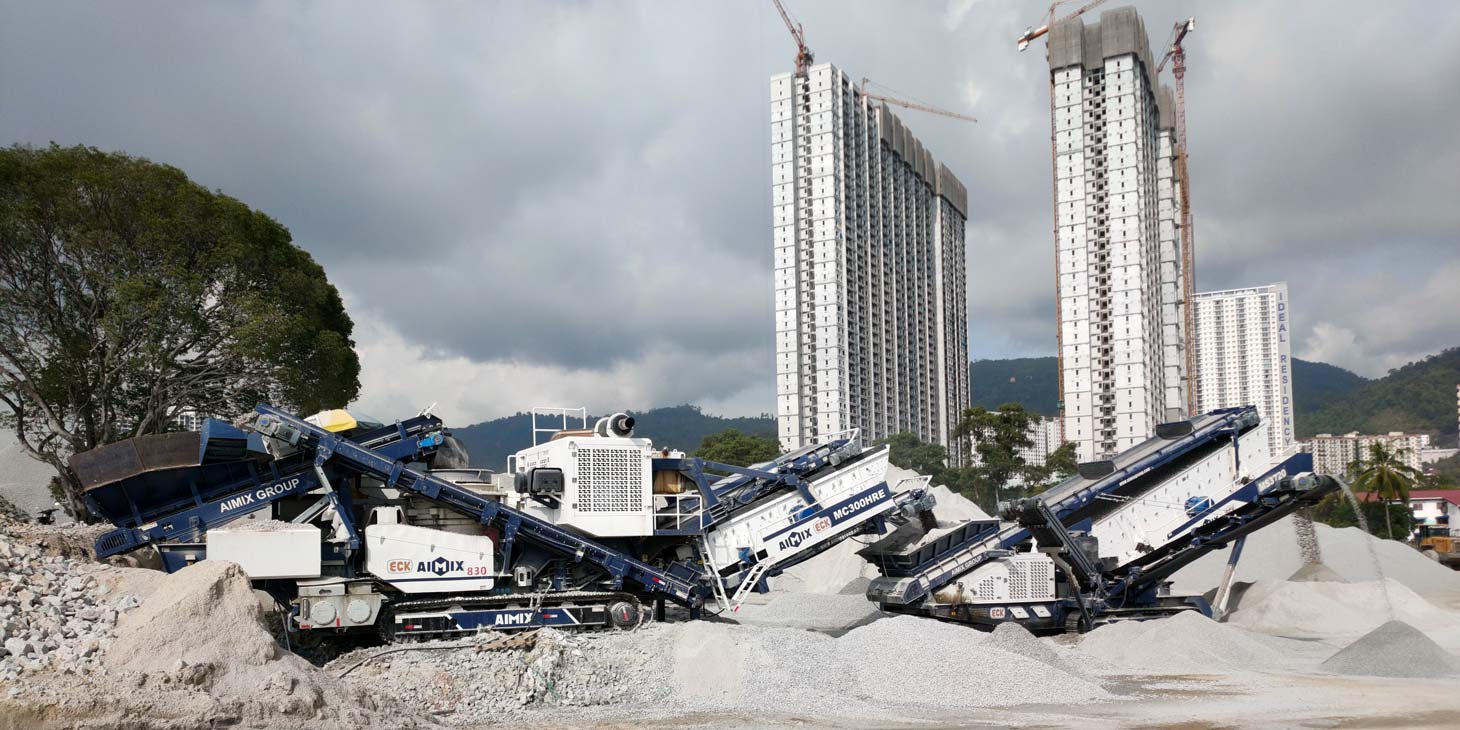

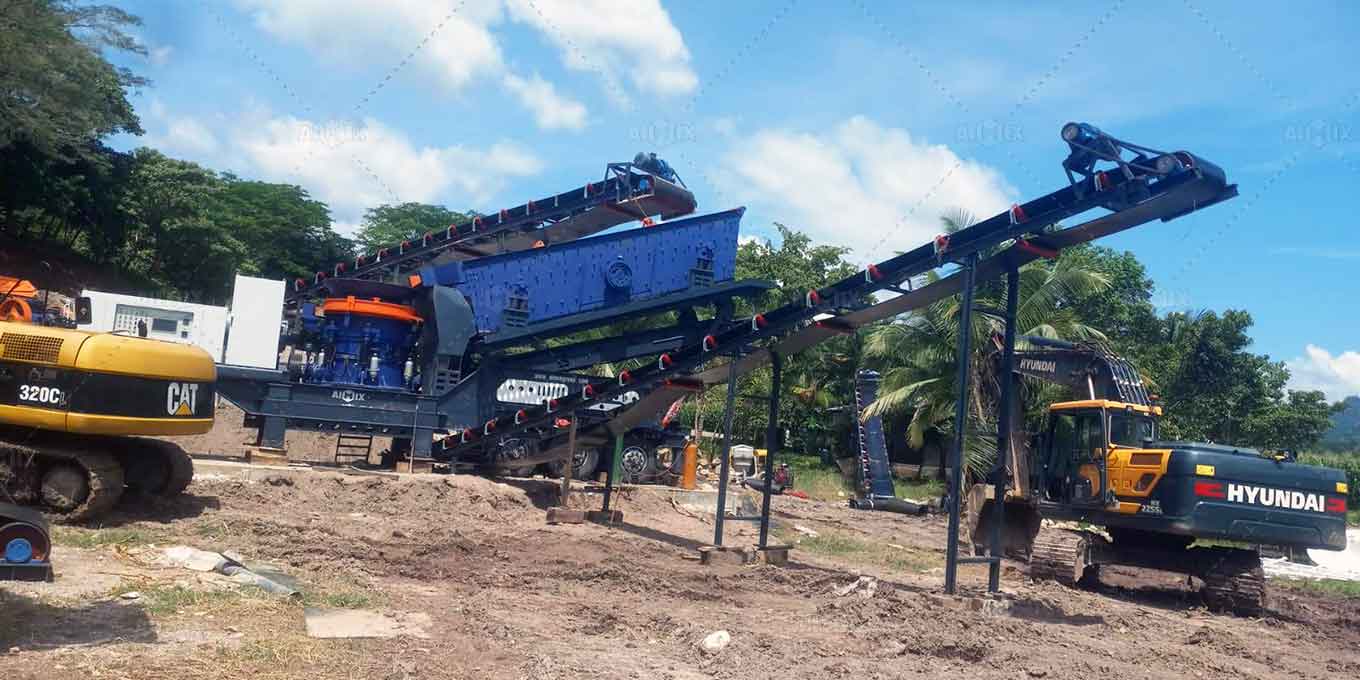

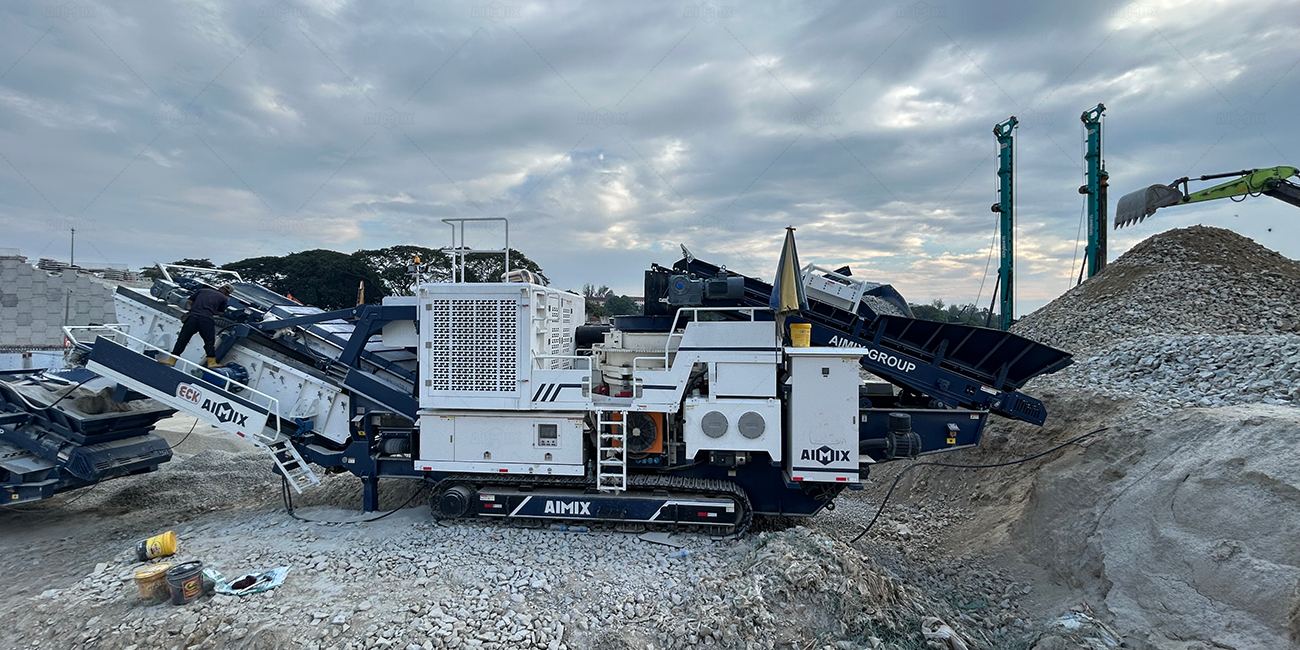

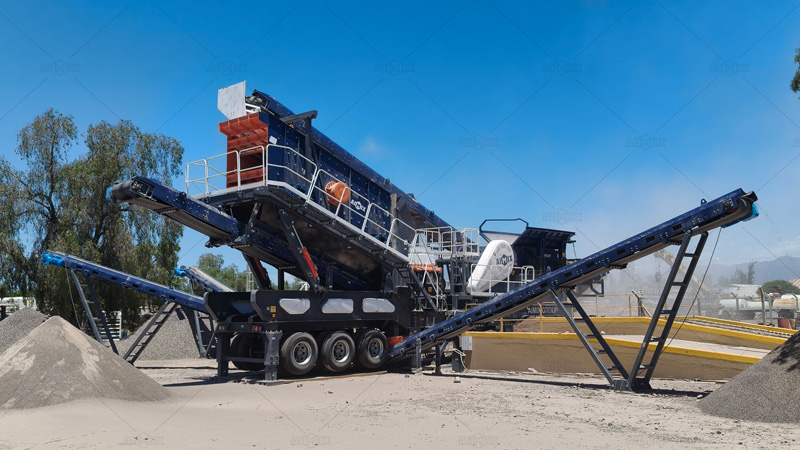

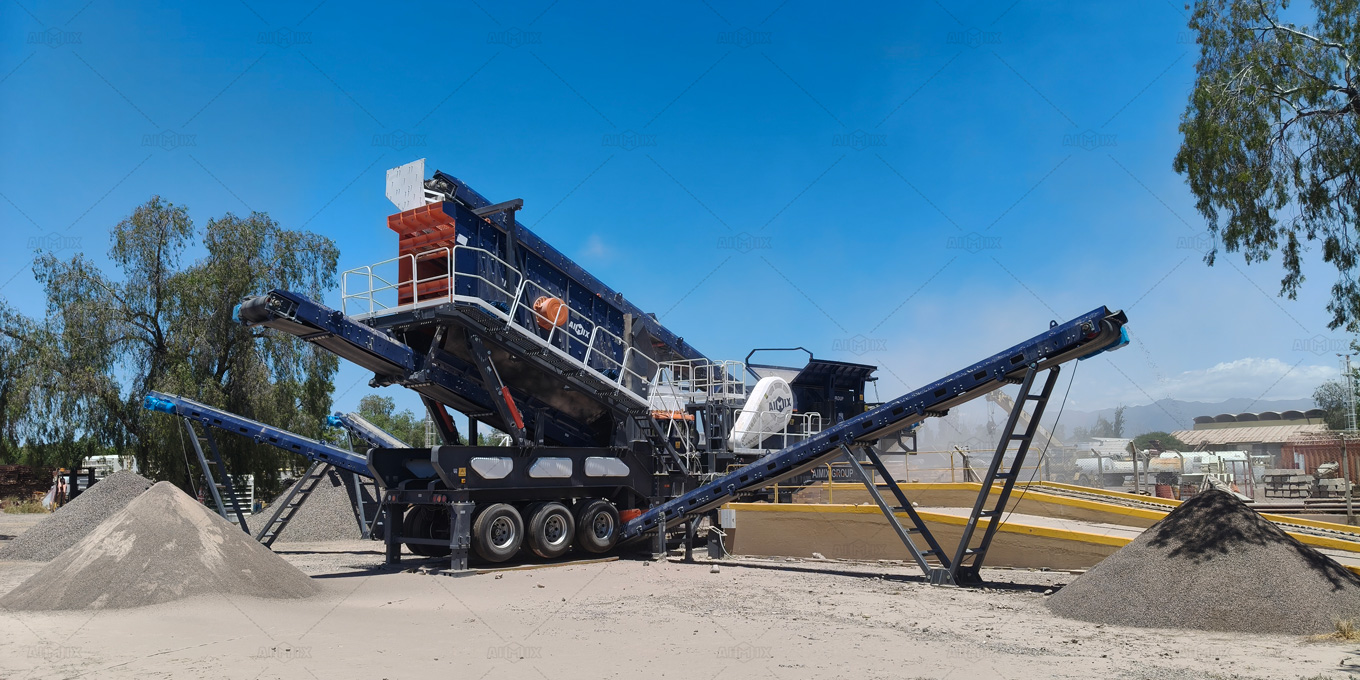

How Much Should You Expect to Pay for a Crawler Type Mobile Granite Crusher?

Embarking on a quarrying or major construction project where granite is the primary feedstock is a thrilling venture. To tackle this formidable material efficiently, the crawler type mobile crusher stands out as a masterful piece of engineering—a self-propelled, tracked fortress that brings the mobile crushing plant directly to the rock face. But this capability comes with a significant and often variable price tag. Determining how much you should expect to pay isn't about finding a single number; it's an analytical exercise in understanding the precise value proposition you require. The investment spectrum is vast, reflecting a machine's capacity, durability, and technological pedigree.

Deconstructing the Price Spectrum: From Entry-Level to Premium Power

Navigating the market reveals three broad tiers of investment. At the entry point, you may encounter older, used models or very basic new machines from lesser-known manufacturers. Here, prices can range from approximately $150,000 to $300,000. This tier offers mobility and function but often involves compromises in component quality, fuel efficiency, and long-term reliability. It’s a viable starting point for lower-volume or intermittent projects where capital preservation is the immediate priority. The core of the market—the professional tier—is where most serious operators focus. For a new, robust crawler crusher from a reputable international brand, engineered to handle granite's abrasiveness, you should anticipate an investment between $350,000 and $600,000. This bracket delivers proven performance, higher throughput, better fuel economy, and critical manufacturer support. At the apex lies the premium performance tier. These are high-capacity, technologically advanced machines with superior crushing chambers, intelligent automation systems, and heavy-duty components designed for continuous, high-output granite processing. Stone crusher machine price here can confidently range from $650,000 to well over $1 million, representing the peak of operational efficiency and durability.

The Critical Variables: What Truly Drives the Investment

The staggering price range is not arbitrary; it is a direct function of specific, measurable variables. The foremost driver is capacity and desired output. A machine targeting 200 tons per hour commands a fundamentally different price than one built for 400 tons per hour, due to the scale of its engine, crusher unit, and structural components. Next is granite-specific engineering. Granite is not just hard; it's abrasive. A crusher built for softer limestone will falter quickly. Expect to pay a premium for a specialized jaw or cone crusher with manganese steel wear parts, a reinforced chassis, and hydraulic systems designed for sustained high pressure. Finally, brand equity and technological sophistication are potent cost factors. Established brands with decades of R&D embed advanced diagnostics, automated settings adjustments, and superior crushing chamber designs that maximize yield and particle shape. You are investing not just in steel, but in optimized performance and a legacy of engineering refinement.

Beyond the Purchase Price: The Total Cost of Ownership Calculus

An enthusiastic analysis demands we look beyond the initial invoice. The true cost of ownership is a more holistic financial picture. First, consider the direct ancillary costs: transporting the massive machine to your site, commissioning it, and potentially setting up supporting infrastructure like conveyors or pre-screening plants. These can add tens of thousands to your project. Operationally, fuel consumption is a major variable; a more efficient, modern engine can save a fortune over thousands of operating hours. The most critical long-term calculus revolves around maintenance and parts. A machine with readily available, standardized parts and good service support will minimize costly downtime. Conversely, a cheaper machine with obscure or poorly manufactured parts can become a financial sinkhole. Furthermore, consider the residual value. A mobile track crusher machine from a sought-after brand, with a documented service history, will retain a significantly higher resale value, effectively reducing your net equipment cost over time. Therefore, the smartest procurement strategy aligns the machine's capability and pedigree with your specific operational tempo, local support network, and long-term business ambitions. The goal is not to find the cheapest sticker price, but to secure the most profitable and reliable crushing partner for your granite challenge.

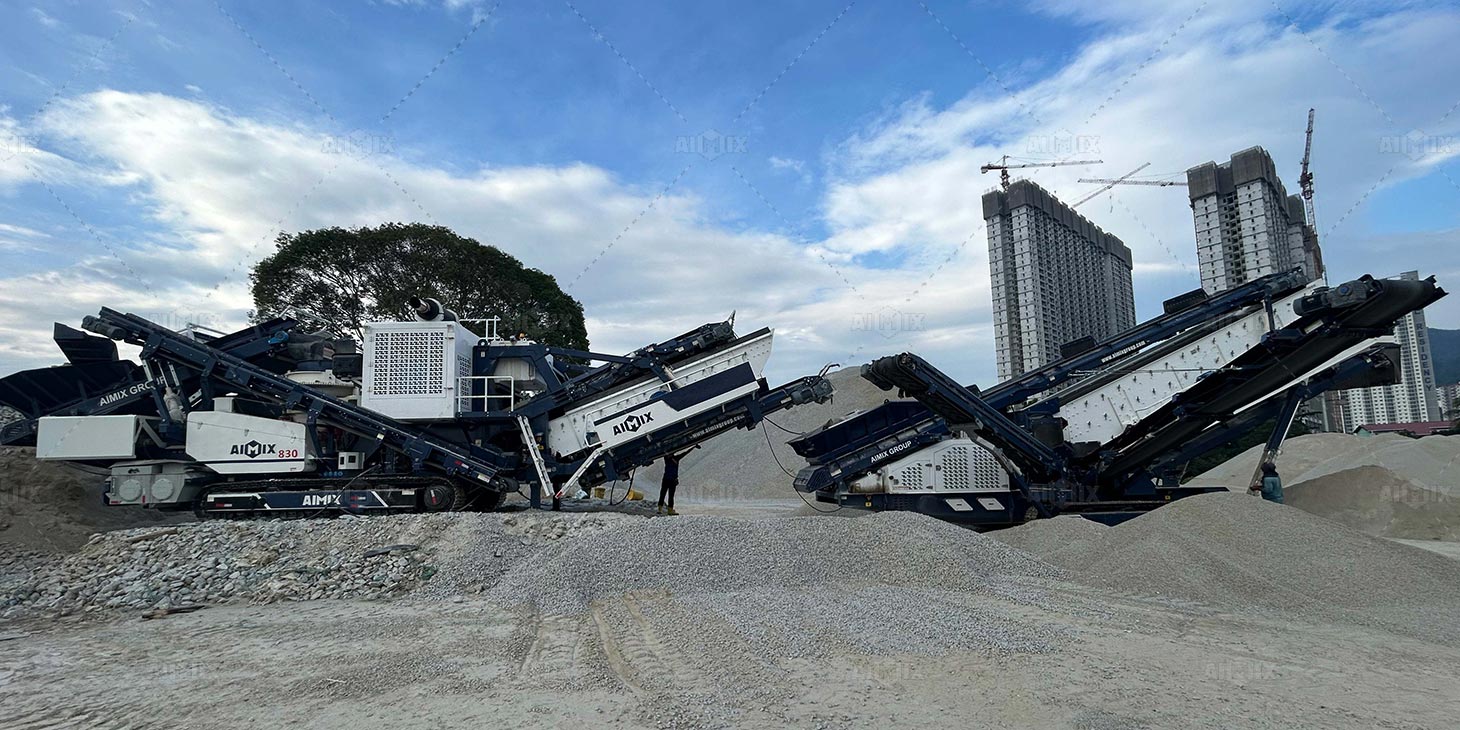

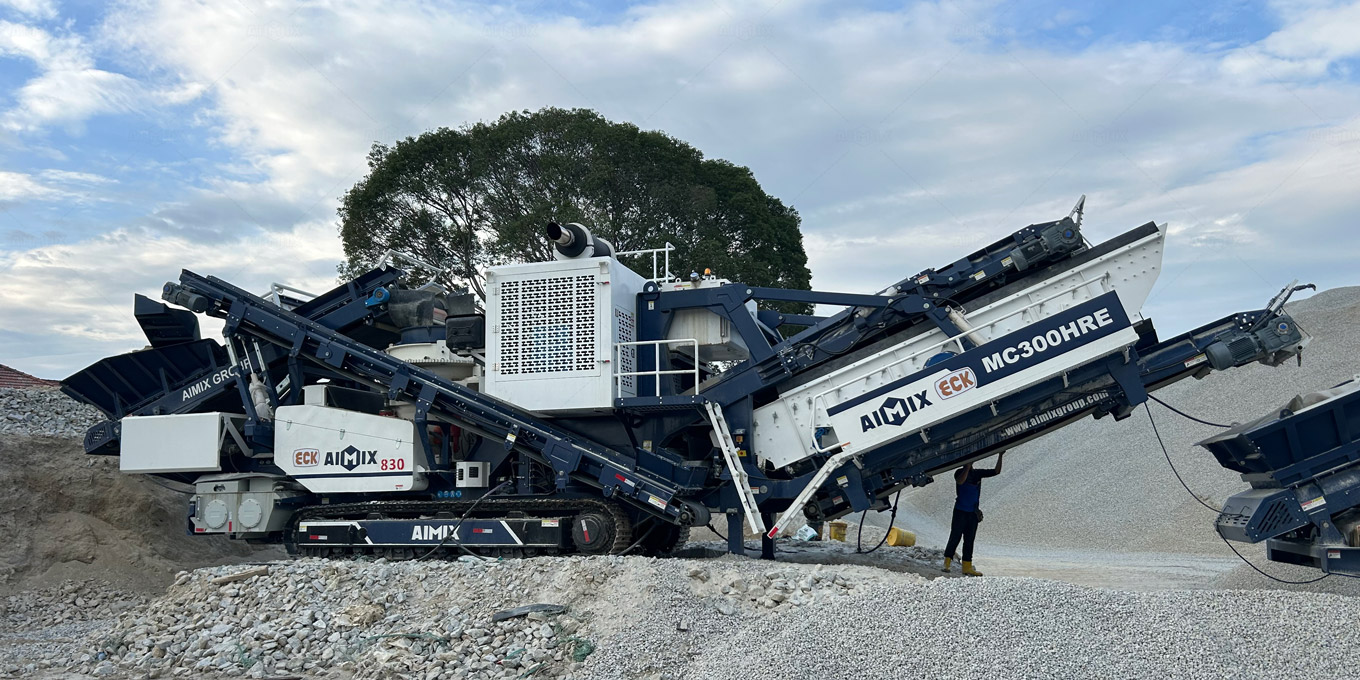

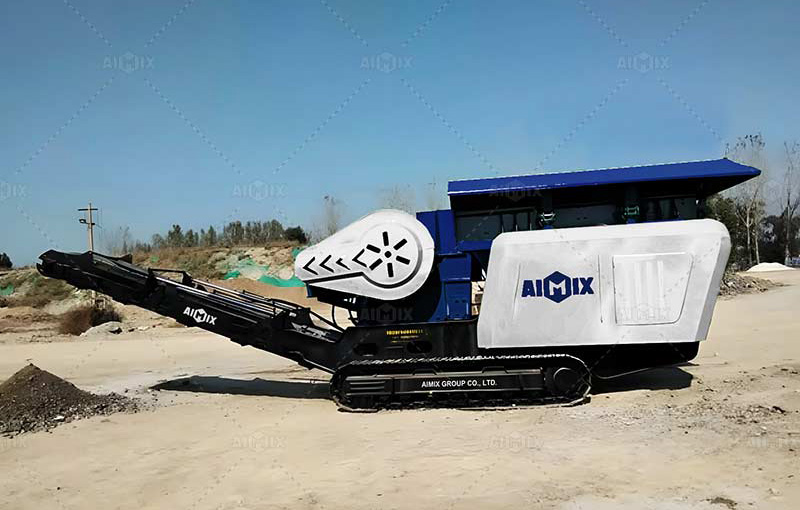

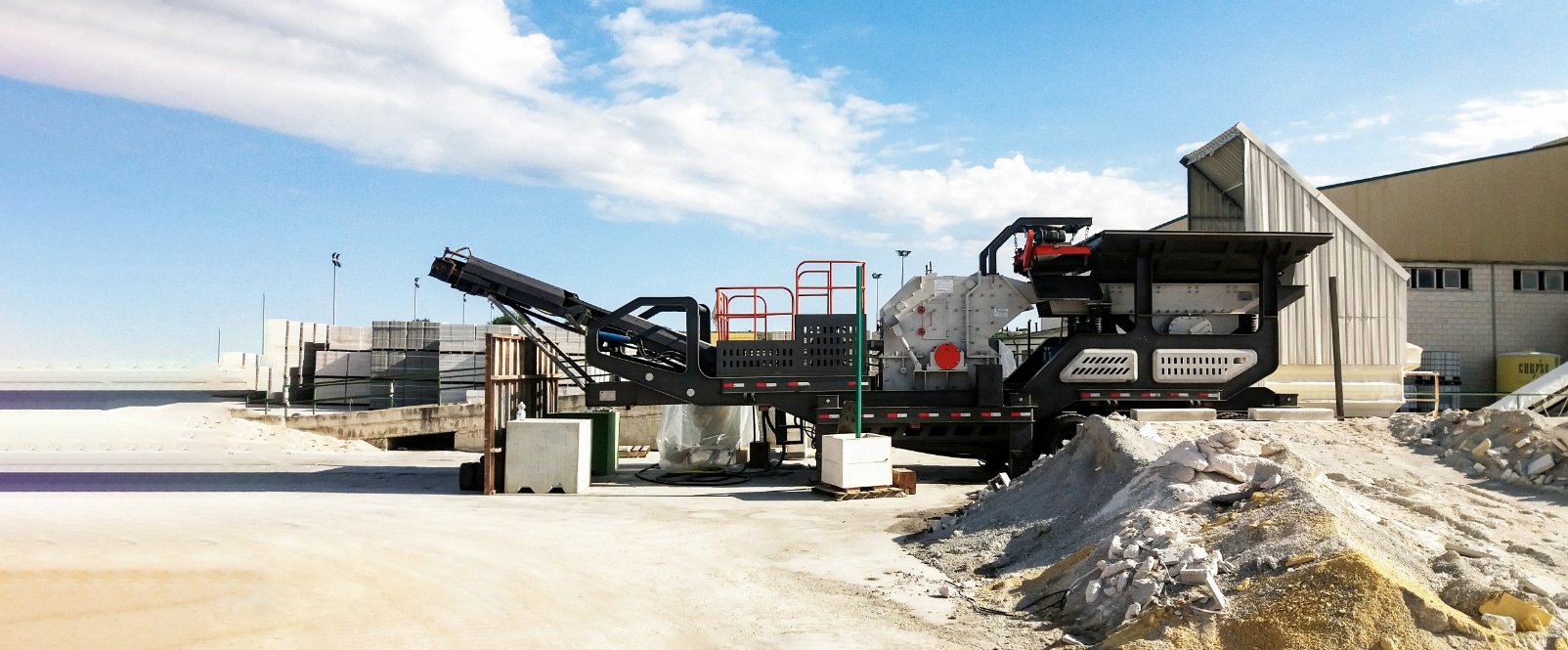

Mobile Jaw and Cone Crushers: A Powerful Duo for River Stone Aggregate Production

Author name

The aggregate industry is undergoing a quiet revolution, and at its heart is the powerful synergy between mobile jaw and cone crushers. This dynamic pairing is fundamentally reshaping how we approach material processing, particularly for challenging and valuable resources like river stone. Gone are the days of relying on fixed, stationary plants that chain operations to a single location, incurring massive costs for material transport. The new paradigm is all about mobility, flexibility, and intelligent workflow design. By bringing the processing plant directly to the raw material source, this mobile crusher plants duo unlocks unprecedented levels of efficiency and profitability. For producers looking to capitalize on the high-demand market for quality river stone aggregate, understanding this potent combination is not just an advantage—it's a strategic imperative.

The River Stone Challenge: From Raw Material to Refined Aggregate

River stone is a prized material in construction, known for its durability, smooth aesthetic, and excellent binding properties. However, its very nature presents a unique set of production hurdles. These stones are often hard, abrasive, and rounded, making them resistant to the initial breaking process. Traditional fixed-plant setups struggle with the economics of river stone quarrying. The sheer logistical burden of transporting vast quantities of raw, unprocessed stone from the riverbed to a distant plant is a budget-draining endeavor, consuming fuel, time, and labor. This model creates a significant operational bottleneck. The mobile crushing solution elegantly circumvents this entire problem. It transforms a logistical nightmare into a streamlined, on-site operation, turning the quarry face into an immediate and direct source of profit.

Deconstructing the Duo: A Synergistic Workflow

The magic of this setup lies in the specialized, complementary roles of the jaw and cone crusher. This isn't just two machines working near each other; it's an integrated system where each unit performs a specific, critical function in a seamless production chain.

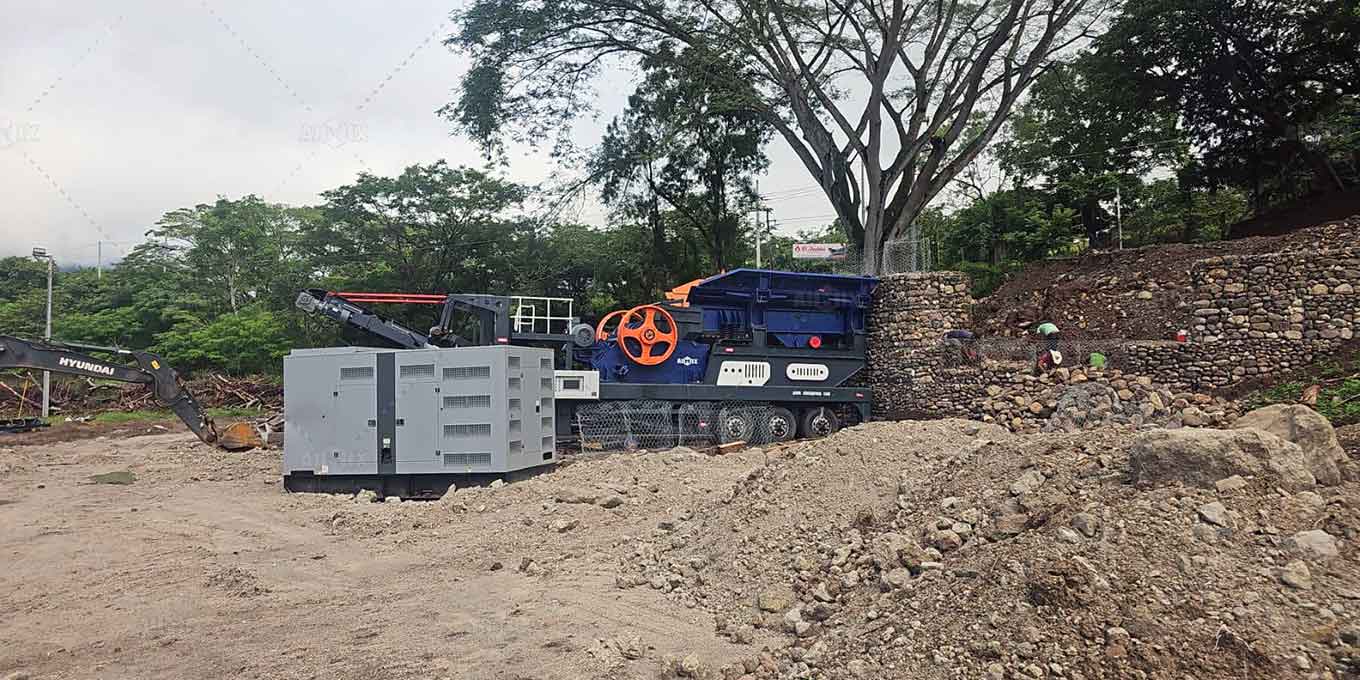

The mobile jaw crusher acts as the primary workhorse, the first point of contact for the raw river stone. Its design is all about brute force and high capacity. Utilizing a powerful, vibrating feeder and a robust, fixed crushing jaw, it takes in the large, rugged stones and performs the initial, coarse reduction. This stage is about breaking down the material into a manageable size, typically around 100-150mm. It’s the foundational step that prepares the feedstock for the next level of refinement.

Following the jaw crusher, the mobile cone crusher takes over for the secondary crushing phase. This is where precision and finesse come into play. The cone crusher operates on the principle of gyratory compression, crushing the pre-broken material between a rotating mantle and a stationary concave liner. This action is perfect for river stone, as it produces a well-shaped, cubical product that is highly valued for concrete and asphalt applications. It’s the difference between producing jagged, irregular fragments and creating uniform, high-quality aggregate that commands a premium price.

The On-Site Advantage: Unlocking Profitability and Flexibility

The benefits of deploying this mobile duo extend far beyond simply crushing rock on location. This approach delivers a tangible competitive edge that resonates through every aspect of a project. The most immediate impact is on the bottom line. By eliminating the need for trucking raw material to a fixed plant, operations slash their most significant variable costs: fuel and transportation. This logistical simplification is a game-changer for profitability.

Furthermore, the inherent agility of a mobile setup provides unparalleled operational flexibility. A project can be completed at one site, and within a matter of hours, the entire crushing circuit can be packed up and transported to the next location. This drastically reduces downtime and allows contractors to take on multiple, smaller-scale projects that would be economically unviable with a fixed plant. This mobility future-proofs a business, allowing it to pivot and adapt to new opportunities and changing market demands with ease. In today's fast-paced environment, the ability to move quickly and efficiently is the ultimate asset.

Navigating Price Trends for Stone Crushing Plants: A Look Ahead

The price trends for stone crushing plants are set to experience significant shifts in 2024, driven by various economic, environmental, and technological factors. Understanding these trends is crucial for industry stakeholders, from investors to operational managers, who need to navigate the complex landscape of the mining and construction sectors. This article will delve into the key drivers of price changes, the anticipated impact on different market segments, and strategic insights for staying ahead in a competitive market.

Economic Drivers Influencing Stone Crushing Plant Prices

Global economic conditions are a primary determinant of stone crusher plant cost . Factors such as inflation, currency exchange rates, and trade policies play critical roles.

Inflation and Raw Material Costs

Inflation remains a pervasive force, affecting all facets of industrial production. For stone crushing plants , the cost of raw materials, such as steel and fuel, is directly impacted by inflationary pressures.

In 2024, raw material costs are projected to rise due to ongoing supply chain disruptions and increased demand in construction activities worldwide. This upward trend in raw material prices will inevitably lead to higher manufacturing costs for stone crushing equipment, subsequently driving up the prices of these plants.

Currency Exchange Rates

Fluctuations in currency exchange rates can have a profound effect on the pricing of imported machinery. Countries with weaker currencies against major manufacturing economies, like the United States and China, will face higher import costs.

For example, if the local currency depreciates significantly, importing stone crushing plants becomes more expensive, pushing up the overall price for buyers. In contrast, a strong local currency can mitigate some of these cost increases, making it an important factor for industry players to monitor closely.

Technological Advancements and Their Cost Implications

Technological innovation is another critical factor shaping the price trends of stone crushing plants. Advances in automation, energy efficiency, and environmental sustainability are redefining the industry’s cost structure.

Automation and Efficiency

The integration of automation technologies in stone crushing plants has led to significant improvements in operational efficiency. Automated systems reduce the need for manual labor, minimize operational downtime, and enhance precision in stone crushing processes.

While the initial investment in automated systems can be substantial, the long-term savings in operational costs make them a valuable investment. In 2024, the trend towards automation is expected to continue, leading to an increase in upfront costs for state-of-the -art equipment but offering potential savings through improved efficiency and lower labor costs.

Energy Efficiency and Sustainability

With growing environmental concerns, energy-efficient and sustainable stone crusher plant is becoming increasingly important. Newer models that incorporate energy-saving technologies and adhere to stringent environmental regulations tend to be priced higher due to their advanced engineering and materials.

However, these plants offer long-term benefits, including reduced energy consumption and lower emissions, which can translate to cost savings and compliance with environmental standards. As the industry moves towards greener solutions, the demand for eco-friendly crushing plants is likely to rise , influencing price trends upward.

Market Segment Impacts and Strategic Insights

The varying impacts on different market segments and strategic recommendations for industry stakeholders are crucial for navigating the changing landscape of stone-crushing plant prices in 2025.

Impact on Small and Medium Enterprises (SMEs)

SMEs often face the brunt of price increases due to their limited financial resources. The rising costs of raw materials, coupled with the need for technological upgrades, can strain their budgets.

To mitigate these challenges, SMEs should explore financing options, strategic partnerships, and incremental upgrades rather than full-scale replacements. Leveraging government incentives for sustainable practices and energy-efficient machinery can also provide financial relief and competitive advantages.

Opportunities for Large-Scale Operations

Large-scale operations, with their greater financial leverage, are better positioned to absorb price increases and invest in advanced technologies. They can benefit from economies of scale, bulk purchasing, and long-term contracts with suppliers.

For these players, 2024 presents an opportunity to consolidate their market position by investing in the latest automation and sustainability technologies. By doing so , they can enhance operational efficiency, reduce long-term costs, and meet the growing demand for environmentally responsible practices.

Strategic Insights for Staying Ahead

To stay competitive in the evolving market, all industry players should adopt a proactive approach. This includes staying informed about global economic trends, investing in technological advancements, and prioritizing sustainability.

Regularly reviewing and adjusting pricing strategies based on market conditions, exploring innovative financing options , and fostering partnerships with technology providers can help companies navigate the complexities of rock crusher machine price trends in 2024. By aligning their strategies with industry developments, businesses can optimize their investments and maintain a competitive edge.

In conclusion, the price trends for stone crushing plants in 2024 will be shaped by a confluence of economic, technological, and environmental factors. By understanding these influences and adopting strategic measures, industry stakeholders can effectively manage costs and seize opportunities in the dynamic market landscape .

Selecting the Best Stone Crusher Plant Manufacturer: A Comparison of Global and Local Suppliers

The pivotal decision of selecting a stone crusher plant manufacturer carries profound implications for the long-term productivity and financial health of any quarrying or construction enterprise. This choice extends far beyond a simple transaction; it is the foundation upon which your operational efficiency, output quality, and profitability will be built for years to come. Many business owners find themselves at a critical juncture, weighing the considerable merits of large, internationally recognized global suppliers against the distinct advantages offered by established local or regional manufacturers. Each pathway presents a unique constellation of benefits and potential compromises, from technological sophistication and brand prestige to logistical pragmatism and nuanced local support. Navigating this complex landscape requires a discerning eye and a clear understanding of your own operational DNA, project requirements, and strategic vision for growth.

The Global Supplier: A Paradigm of Scale and Technological Prowess

Opting for a global manufacturer often means gaining access to a formidable reservoir of research and development. These industry titans invest heavily in advancing crushing technology, resulting in stone crusher plants that incorporate cutting-edge automation, sophisticated control systems, and engineering innovations focused on maximizing energy efficiency and product yield. Their product portfolios are typically vast, offering a wide array of configurations—from rugged jaw crushers for primary breaking to intricate multi-stage cone and impact crusher setups—allowing for a highly customized solution. Furthermore, the manufacturing processes are governed by international quality standards, ensuring a consistent level of build quality and component reliability that is recognized worldwide. This global footprint can be a significant asset for companies operating across multiple regions or for those undertaking exceptionally large-scale, complex projects where technological edge is paramount.

However, this paradigm is not without its inherent challenges. The very scale that enables such technological advancement can sometimes introduce complexities in logistics and communication. Lead times for the delivery of the plant itself, and later for critical spare parts, may be extended due to international shipping and customs procedures. The initial cost may also be higher, reflecting the advanced engineering and brand equity. Perhaps more subtly, a lack of deep, localized knowledge can sometimes create a disconnect. A sales engineer based overseas may not possess an intimate understanding of the specific abrasiveness of your local granite or the particular environmental regulations and climatic conditions your operation must navigate daily.

The Local Supplier: The Virtues of Proximity and Contextual Understanding

In contrast, a reputable local manufacturer offers the invaluable advantage of proximity and a deeply contextual understanding of your operating environment. Their primary strength lies in unparalleled responsiveness and agility. When you require service, a replacement part, or technical support, their team is often just a short drive away, capable of being on-site within hours rather than days or weeks. This can dramatically minimize costly downtime and keep your project on schedule. Their familiarity with the regional landscape is a tangible asset; they possess an intrinsic, often hard-won, knowledge of the performance characteristics of local stone varieties. This allows them to recommend crusher settings, liner types, and overall crushing plant configurations that are optimally suited to your specific feed material.

This local expertise often extends to a nuanced comprehension of regional business practices, regulatory frameworks, and even climatic challenges, ensuring the plant is not just technically sound but also contextually appropriate. The communication barrier is typically lower, fostering a more direct and collaborative relationship. The potential compromise in this scenario often resides in the scope of technological offering. A local supplier may not have the same extensive R&D budget as a global entity, potentially resulting in a product line that, while robust and reliable, may lack the latest automation features or be limited in its model range and customization options for highly specialized applications.

A Synergistic Approach: Making an Informed Decision for Your Enterprise

The most prudent path forward is not to seek a universal winner but to engage in a meticulous, synergistic evaluation of your own enterprise's unique needs. Begin by conducting a frank assessment of your project's technical and operational imperatives. What is the required production volume and the precise specification of your end products? How critical is the absolute latest automation technology to your business model versus the paramount importance of rapid service response? Weigh the long-term cost of ownership, which includes not only the purchase price but also projected maintenance expenses, potential downtime costs, and spare parts availability.

Engage in rigorous due diligence with shortlisted crusher machine manufacturers from both camps. Request detailed references and, crucially, visit existing installations to see the equipment in operation and speak directly with other owners. Scrutinize the warranty terms and the concrete details of their after-sales service commitment. The ultimate goal is to move beyond a simple procurement event and forge a genuine partnership. The right manufacturer, whether global or local, is one that demonstrates a profound commitment to your success, offering a machine that is not only a feat of engineering but is supported by a framework that ensures its reliability and productivity within the unique contours of your business and locality.

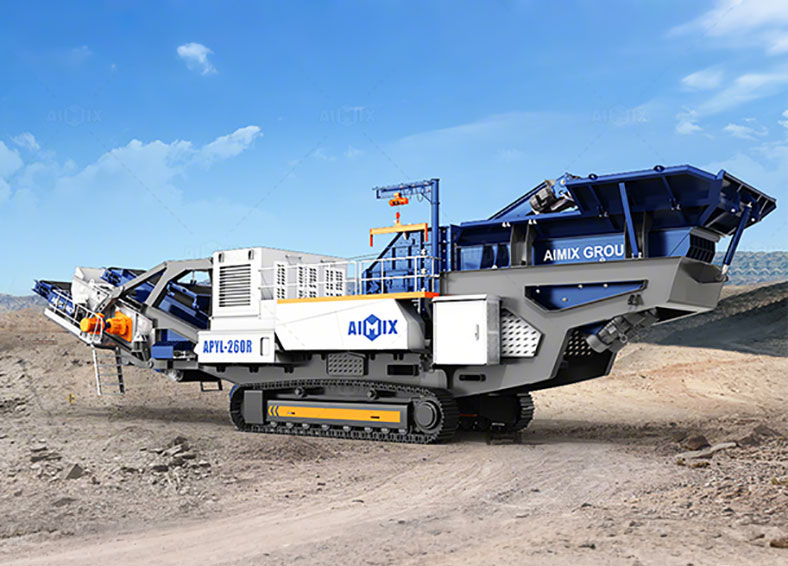

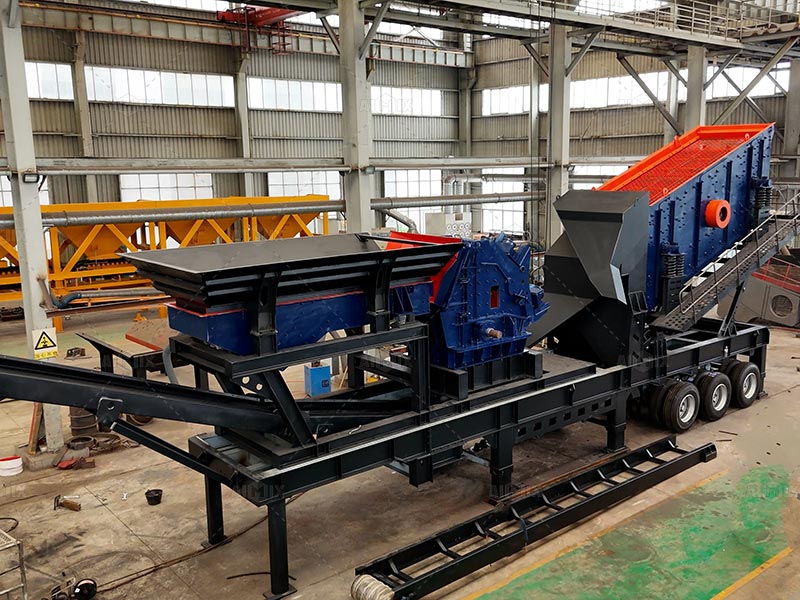

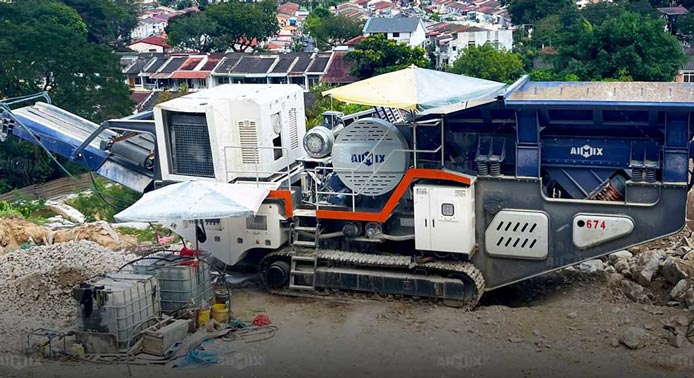

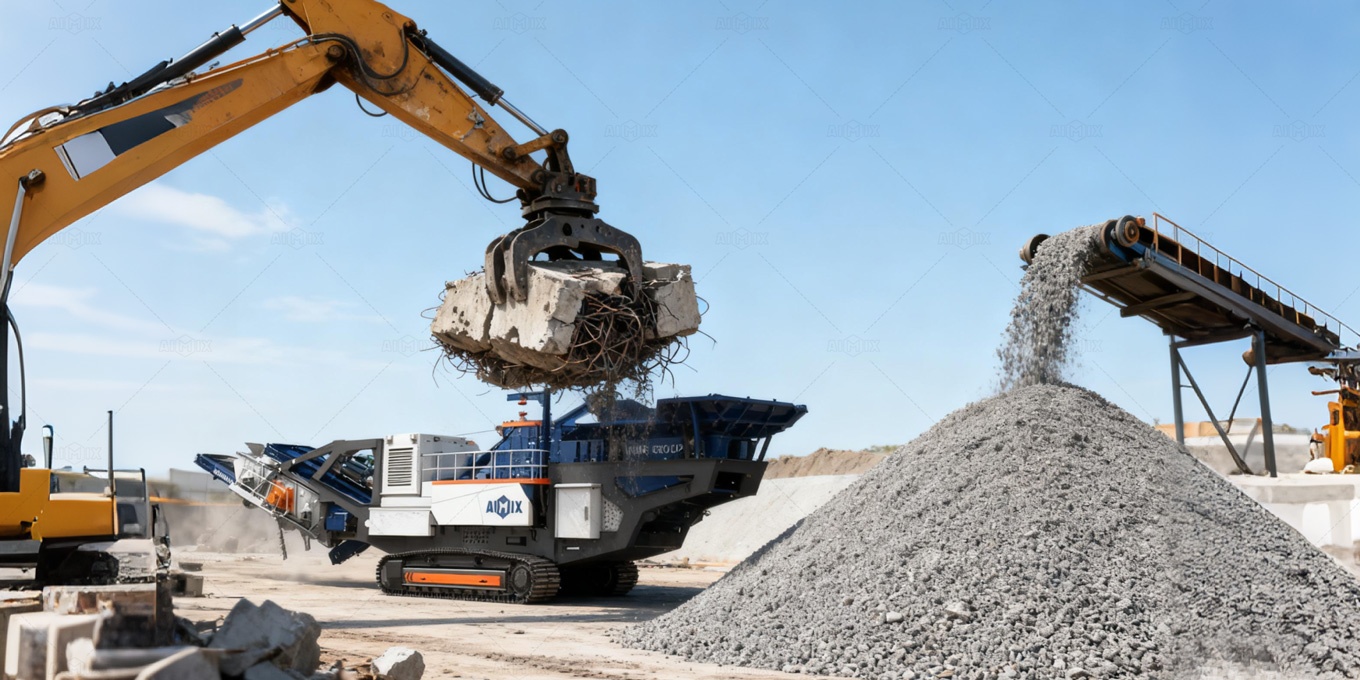

Mobile Impact Crushers and Waste Management: Processing Potential and Environmental Considerations

The integration of mobile impact crushers into construction and demolition waste management strategies represents a significant technological advancement, yet one that demands rigorous critical examination. These machines offer the compelling promise of transforming waste streams into valuable secondary aggregates directly on-site, ostensibly reducing landfill burden and transportation emissions. However, a comprehensive evaluation must extend beyond these apparent benefits to scrutinize the full spectrum of their operational mechanics, environmental externalities, and regulatory complexities. The purported sustainability of any recycling process is contingent upon a holistic assessment that acknowledges both its potential and its pitfalls, avoiding the trap of technological solutionism that overlooks ancillary impacts.

The Operational Paradigm of Mobile Impact Crushing

The fundamental operating principle of a mobile impact crusher involves the high-velocity impact of rapidly rotating hammers or blow bars against incoming material. This violent fragmentation process reduces large chunks of concrete, asphalt, and masonry into specified aggregate sizes. The machine's mobility, facilitated by a tracked or wheeled undercarriage, is its primary operational advantage, enabling deployment across multiple sites without the fixed infrastructure of a stationary plant. A critical feature is the integrated screening system, which allows for the immediate separation of crushed material into various gradations, from coarse base course to finer aggregates.

This on-demand processing capability creates a closed-loop material system on the demolition site itself. The theoretical efficiency is evident: waste is processed where it is generated, and the resulting product can be reused immediately for sub-base or backfill applications. However, this efficiency is predicated on optimal conditions—consistent feed material, adequate pre-sorting to remove contaminants like wood and metal, and skilled operation to maintain desired output specifications. The machine’s throughput potential is substantial, but it is not immune to bottlenecks caused by material variability or mechanical limitations.

Diverting Demolition Debris from Landfill Deposition

The most frequently cited benefit of mobile impact crushing is its capacity for landfill diversion. By processing inert construction debris into usable aggregate, these machines directly reduce the volume of material requiring disposal. The quantitative impact can be significant; a single crawler crusher can processes hundreds of tons of waste per day, diverting a substantial portion of a project's waste stream. This alleviates pressure on landfill capacity and mitigates the long-term environmental liabilities associated with leachate and land use.

The lifecycle of the recycled aggregate, however, warrants careful consideration. While suitable for many applications such as road base or pipe bedding, its use in structural concrete is often limited by standards and specifications that may require virgin materials. The true environmental benefit is maximized only when the recycled product displaces the extraction and processing of virgin aggregate. This displacement effect must be calculated to validate the net environmental gain, considering the energy expended in crushing and the potential for downcycling—where the recycled material is used in a lower-value application than the original.

An Environmental Audit: Emissions and Acoustic Footprint

A critical analysis must confront the direct environmental impacts of the crushers themselves. Typically powered by diesel engines, these machines are sources of combustion emissions, including nitrogen oxides (NOx), particulate matter (PM), and carbon dioxide (CO2). While they eliminate transportation emissions from hauling waste to distant landfills, their on-site operation creates a localized point source of air pollution. The generation of dust, particularly crystalline silica from concrete crushing, poses a significant respiratory hazard to operators and nearby communities if not rigorously controlled through water suppression or dust collection systems.

Equally pertinent is the acoustic footprint. Impact crushing is an inherently noisy process, with noise emanating from the engine, the crushing chamber, and material impacting steel plates and conveyors. This can lead to elevated sound levels that exceed occupational exposure limits for workers and create noise nuisance for adjacent residential or commercial areas. The mobile nature of the equipment means these impacts are transient but can affect a wider community over time, necessitating robust monitoring and mitigation measures to be truly sustainable.

Regulatory Compliance and Operational Best Practices

The operation of a mobile impact crusher exists within a complex web of environmental regulations. These may include air quality permits for dust and emissions, construction waste disposal licenses (as the material is often still classified as waste until processed), and compliance with noise ordinances. Navigating this regulatory landscape is a non-negotiable aspect of responsible operation. Failure to do so can result in fines, work stoppages, and reputational damage, undermining any environmental benefits.

Therefore, the deployment of this technology must be guided by stringent best practices. This encompasses comprehensive pre-operational planning, including site-specific risk assessments for dust and noise. Effective mitigation is mandatory: using water sprayers or chemical dust suppressants, erecting acoustic barriers, and scheduling operations to minimize community impact. Furthermore, a commitment to proper maintenance ensures the machine operates at peak efficiency, minimizing fuel consumption and unnecessary emissions. Ultimately, the environmental promise of mobile impact crushing is not inherent to the technology alone; it is realized only through conscientious, compliant, and critically aware implementation.

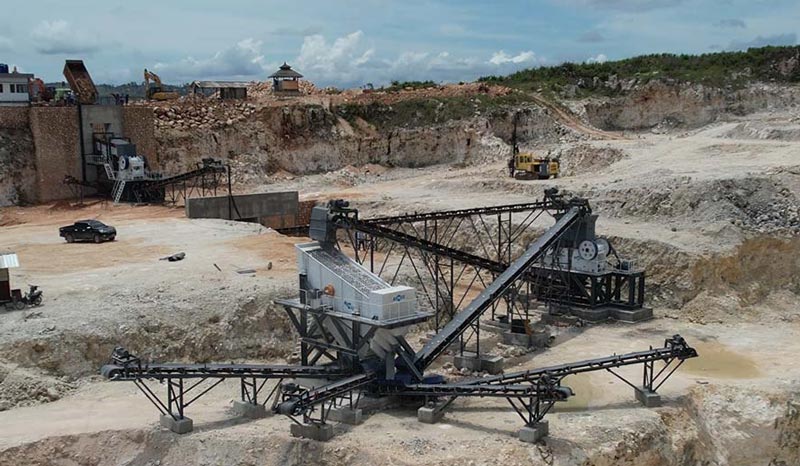

A Step-by-Step Approach to Configuring Your Limestone Crusher Machine Plant

The journey from a collection of machinery to a fully operational limestone crusher plant is a meticulous process that demands careful planning and precise execution. A haphazard approach can lead to inefficiencies, premature wear, and subpar product quality. A structured, step-by-step methodology, however, transforms individual components into a cohesive and high-performing system. This systematic configuration is paramount for unlocking the plant's full potential, ensuring not only optimal productivity but also longevity, safety, and the consistent delivery of precisely graded aggregate. Embracing this procedural diligence from the outset is the most reliable path to operational excellence.

The Foundational Blueprint: Pre-Configuration Planning and Assessment

Before a single bolt is tightened, a period of diligent planning sets the stage for success. This initial phase involves a thorough analysis of the raw limestone's fundamental characteristics, including its compressive strength, abrasiveness, and initial feed size. Concurrently, clear definition of the final product requirements—the desired size, gradation, and end-use application—is absolutely critical. This intelligence directly informs the selection of the optimal plant layout, whether it be a fixed, skid-mounted, or mobile configuration. The crucial step here is ensuring machine synergy; the primary crusher, secondary crusher, and screening equipment must be perfectly matched in terms of capacity and function to create a seamless and efficient flow of material without creating bottlenecks or underutilization.

The Mechanical Symphony: Systematic Assembly and Component Integration

With a definitive plan in hand, the physical assembly begins. This stage is akin to conducting a mechanical symphony, where each component must be introduced in the correct sequence and in perfect harmony with the others. It starts with establishing a perfectly level and stable foundation for the primary crusher, the workhorse of the operation. Following this, the feeding system, such as a vibrating grizzly feeder, is positioned and aligned to ensure a consistent and regulated flow of material into the crusher, preventing overload and promoting uniform wear. Conveyors are then meticulously aligned and tensioned to avoid material spillage and belt drift, forming the vital arteries that connect the primary crushing station to subsequent screening and secondary crushing units.

The Calibration Crucible: Fine-Tuning for Performance and Efficiency

Once the plant is physically assembled, the intricate process of calibration commences. This is where the machinery is fine-tuned to achieve the specific product goals. The closed-side setting (CSS) on jaw and cone crushers is adjusted with precision to dictate the maximum size of the output material. These initial settings are provisional, requiring subsequent refinement based on the results of initial material processing. Beyond the crushers themselves, auxiliary systems demand equal attention. The screening units must be configured with the appropriate mesh sizes to accurately sort the crushed material, while dust suppression systems are calibrated to effectively mitigate particulate matter without oversaturating the aggregate, ensuring compliance and a safer, cleaner work environment.

The Operational Prelude: Conducting Verification Tests and Initial Run-In

The final configuration step involves a rigorous series of verification tests before full-scale production is authorized. This operational prelude begins with a no-load test, running the entire plant without material to check for unusual vibrations, noises, or operational hiccups. Once this is passed, the plant graduates to processing controlled batches of material. The output from these initial runs is meticulously analyzed for gradation and shape. This data provides the empirical evidence needed to make any final, minor adjustments to gravel crusher settings or screen configurations. This phased approach to commissioning allows operators to become familiar with the plant's rhythms and controls in a controlled setting, building confidence and ensuring a smooth, successful transition to full operational status.

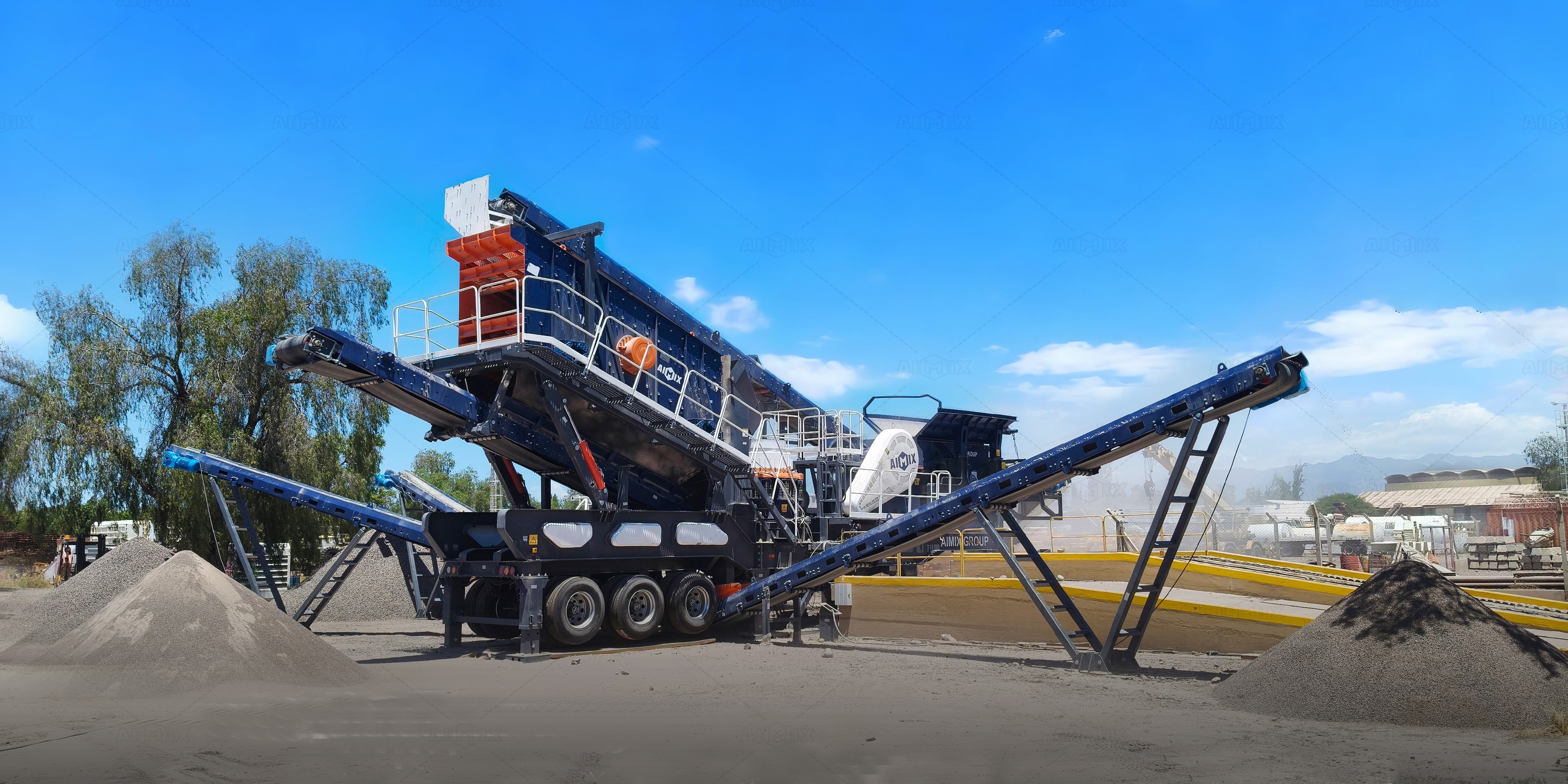

Crusher Mobility vs. Capacity: What’s More Valuable for Your Quarry Site?

The decision between prioritizing mobility or capacity in crushing equipment represents a fundamental strategic choice for quarry operators. While high-capacity stationary plants promise maximum throughput, mobile crusher offers unparalleled flexibility—but the optimal solution depends on site-specific variables like deposit geometry, haulage distances, and production targets. Modern operations must weigh these factors against evolving market demands, where the ability to adapt quickly to changing material requirements often outweighs raw processing power.

The Case for Mobility: Flexibility as a Competitive Advantage

Mobile crushing systems excel in quarries with dispersed reserves or complex geology. Track-mounted units can follow the highest-quality stone seams, reducing dilution from marginal material and eliminating inefficient haul cycles. Key advantages include:

Rapid redeployment between multiple faces or satellite pits (as fast as 30-45 minutes for some models)

Smaller operational footprints that minimize pre-production stripping costs

Just-in-time processing that reduces stockpiling and material degradation

The financial impact becomes clearest when analyzing transport costs. For quarries with haul distances exceeding 500 meters, mobile crushers typically reduce trucking expenses by 40-60%. Their ability to process material at the extraction face also decreases fuel consumption and carbon emissions—an increasingly important factor as sustainability regulations tighten.

Capacity Considerations: When Throughput Trumps Flexibility

Large stationary stone crusher plant still dominate high-volume operations with consistent feed material. Their advantages become apparent when:

Annual production exceeds 1 million tons of uniform material

Deposit geometry allows 5+ years of fixed-position extraction

Energy efficiency (stationary plants average 15-20% lower kWh/ton)

Modern stationary systems now incorporate semi-mobile elements—like shiftable conveyors and modular designs—that provide limited mobility without sacrificing capacity. The most advanced installations achieve 2,500+ tph while maintaining 92-95% uptime through predictive maintenance systems.

Hybrid Solutions: Bridging the Divide

The industry is witnessing a convergence of mobile and stationary philosophies through:

Semi-mobile crushing stations with 800-1,200 tph capacity that relocate quarterly

Plug-and-play modules combining mobile crushers with stationary conveying systems

Temporary stationary plants designed for 2-3 year deployments

These hybrid approaches allow quarries to balance the mobility-capacity equation based on changing operational needs. A growing number of operations now deploy mobile primary jaw crusher feeding semi-permanent secondary and tertiary circuits—an arrangement that delivers 80% of stationary plant throughput with 60% of mobile system flexibility.

The mobility-capacity decision ultimately hinges on a quarry's reserve characteristics and market position. Single-site operators serving local markets with consistent demand often benefit from stationary investments. Multi-pit operations or those supplying specialty aggregates typically find mobile solutions deliver superior economics. As equipment continues evolving, the false choice between mobility and capacity is giving way to smarter systems that optimize both.

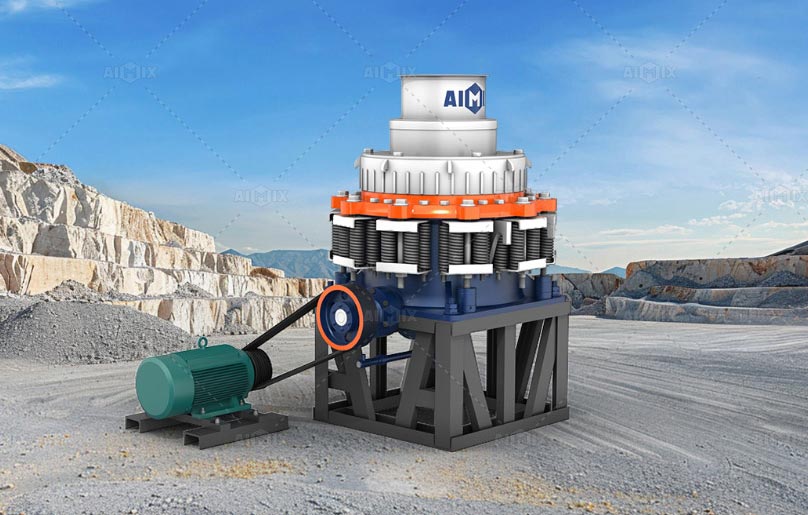

Crushing Hard Rocks? Here’s Why a Cone Crusher is Your Best Bet!

When it comes to reducing formidable geological formations into usable aggregate, not all crushing equipment is created equal. Hard rocks like granite, basalt, and quartzite present unique challenges that demand robust, efficient, and reliable solutions. Cone crushers have emerged as the premier choice for tackling these stubborn materials, offering a blend of power, precision, and longevity that other crushers simply cannot match. Their distinctive crushing mechanism and engineering excellence make them indispensable in mining, quarrying, and construction applications where durability and particle shape matter.

The elegance of cone crusher operation lies in its continuous compression crushing action, which efficiently reduces material without excessive wear or energy consumption. This makes them particularly well-suited for high-capacity processing of abrasive materials that would quickly degrade other types of crushers. As we explore the specific advantages of cone crushers, it becomes clear why they have earned their reputation as the workhorses of hard rock reduction.

Superior Crushing Mechanics for Resilient Materials

Cone crushers utilize a gyrating spindle inside a concave bowl liner to compress rock between mechanical surfaces. This creates a consistent, gradual reduction process that applies tremendous pressure to fracture even the most recalcitrant stones. The interparticle crushing action—where rocks crush against other rocks rather than solely against metal surfaces—significantly reduces wear on the crusher components while maintaining excellent reduction ratios.

The adjustable closed-side setting allows operators to fine-tune output size with remarkable precision, producing consistently shaped aggregate ideal for high-specification applications. This combination of brute force and finesse enables cone crushers to transform obstinate boulders into perfectly graded cubical product with minimal flaky or elongated particles that can compromise concrete strength and asphalt performance.

Unmatched Efficiency and Productivity

Modern cone crushers incorporate advanced hydraulic systems and automated controls that optimize performance while protecting the machine from damage. These systems continuously monitor and adjust aggregate crusher machine operations in real-time, maintaining optimal crushing conditions even as material hardness fluctuates. The result is consistently high throughput with reduced energy consumption per ton of processed material—a crucial consideration in today's cost-conscious operating environment.

Automated setting regulation ensures consistent product quality without manual intervention, while clearing systems quickly expel tramp metal or uncrushable material that would cause downtime in other crusher types. These features combine to deliver higher availability and more tons produced between maintenance intervals, making cone crushers the clear economic choice for high-volume hard rock operations.

Enhanced Durability and Operational Longevity

The robust construction of cone crushers reflects their intended application against nature's toughest materials. Critical components are manufactured from high-strength alloys and designed with generous safety factors to withstand years of abrasive service. Advanced sealing systems protect bearings from dust and contaminants, while hydraulic overload protection safeguards the entire mechanism from catastrophic failure when encountering unexpected obstructions.

Wear parts like mantles and concaves are available in various metallurgies to match specific rock characteristics, extending service life and reducing operating costs. Many modern designs feature inverted relief cylinders that allow bowl removal without machine disassembly, dramatically reducing maintenance downtime. These durability enhancements ensure that cone crushers not only survive the punishment of hard rock crushing but thrive in these demanding applications for decades of productive service.

The demonstrated superiority of cone crushers in hard rock applications stems from their unique combination of mechanical advantage, operational intelligence, and structural resilience. While other rock crushers for sale may serve adequately for softer materials, nothing matches the cone crusher's ability to relentlessly reduce the most challenging geological formations while maintaining precise control over product specifications. For operations facing granite, basalt, or other tough materials, investing in cone crusher technology represents not just a equipment selection but a strategic commitment to productivity, efficiency, and long-term operational success.

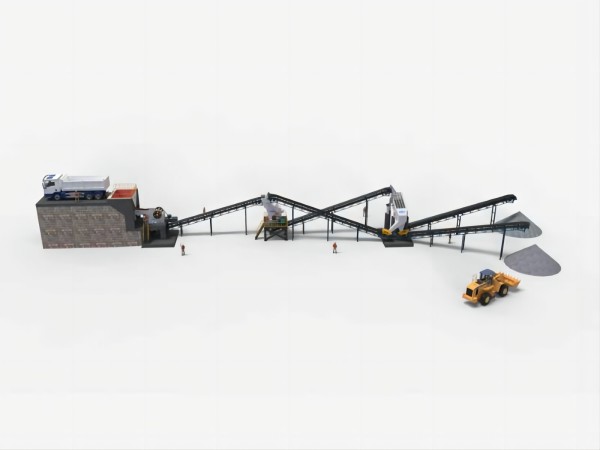

200 TPH Mobile Stone Crusher Plant: How to Design the Perfect Layout for Maximum Efficiency

The growing reliance on high-capacity crushing equipment has positioned the 200 TPH mobile stone crusher plant as a cornerstone of modern aggregate production. Its compact mobility, combined with powerful throughput, allows contractors to process diverse materials efficiently on-site. Yet, achieving maximum efficiency hinges not only on selecting a robust machine but also on designing an optimized layout. An intelligently planned configuration ensures continuous flow, minimizes downtime, and reduces overall operating costs.

Designing a layout for a 200 TPH plant involves more than just arranging components. It requires thoughtful consideration of material characteristics, site constraints, and operational goals. From raw material feeding to final product stockpiling, each stage must integrate seamlessly to sustain consistent production while accommodating future adjustments.

Understanding Key Components and Flow Requirements

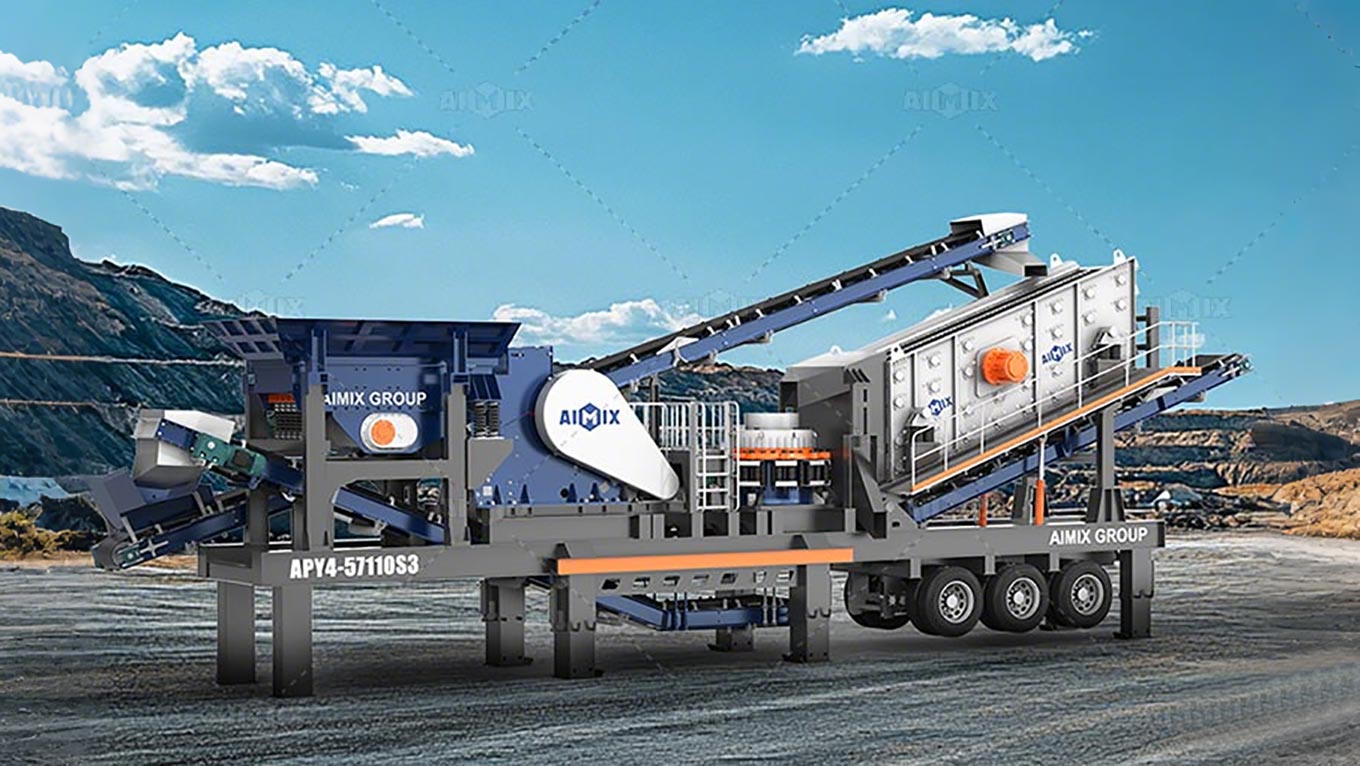

A 200 TPH mobile crushing plant typically integrates a feeder, primary crusher, secondary crusher, vibrating screen, and conveyors. The sequence must be carefully calibrated to avoid bottlenecks. Material flow begins with uniform feeding to maintain steady loading, ensuring crushers work at optimal efficiency rather than at sporadic peaks. Primary rock crushers for sale handle coarse reduction, while secondary units refine particle sizes for better grading. To maintain throughput, the screen must be sized appropriately to handle the full capacity without overflow or frequent blockages.

Matching equipment capacities is crucial. If any single component lags behind others, the entire line slows, causing uneven wear and increased fuel consumption. Thoughtful placement of conveyors at suitable angles prevents spillage and excessive belt strain. Additionally, positioning the unit to allow quick relocation on-site can save time during phased projects or quarry face changes.

Strategic Space Utilization and Mobility

The plant’s layout should optimize space while preserving safe access for operators and maintenance crews. Efficient positioning reduces unnecessary haulage and fuel costs, particularly on larger sites where raw material is spread across varied terrain. Since a 200 TPH unit is often required for road projects or mining operations with shifting locations, its mobility must align with fast setup times.

Compact but accessible arrangements improve serviceability. Hydraulic folding conveyors, modular components, and centralized control panels allow crews to reposition or repair equipment without major downtime. Keeping auxiliary equipment—such as power units, water spray systems for dust suppression, or spare stockpiles—close to the main line enhances workflow efficiency. A well-planned layout also anticipates material expansion, ensuring that additional screening or crushing stages can be incorporated later without major redesigns.

Maximizing Operational Efficiency with Automation

Incorporating intelligent controls into the layout design transforms a high-capacity plant into a precision system. Automation can regulate feeder speed, crusher load, and screen vibration frequency to maintain consistent output quality. Sensors monitor real-time performance, alerting crews to potential issues before they escalate. This prevents overload situations that reduce component lifespan and increase maintenance costs.

Energy savings and product uniformity are direct outcomes of automated systems. By maintaining steady material feed rates and crusher settings, fuel consumption drops while production quality improves. Data logging further allows site managers to analyze trends, adjust layouts when necessary, and forecast future demand with confidence. Integration of remote control options also reduces labor intensity, freeing up operators to oversee multiple stages simultaneously.

A meticulously designed layout for a 200 TPH mobile crushing plant balances raw power with intelligent planning. It ensures every component works in harmony, mobility is preserved, and efficiency reaches its peak. By prioritizing smooth material flow, space-conscious arrangements, and automated regulation, contractors can meet demanding production targets while keeping operating costs under control.

How to Achieve Optimal Results When Crushing Limestone for Construction and Mining

Limestone, a sedimentary rock primarily composed of calcium carbonate, varies in composition and geological characteristics. Understanding the specific makeup of the limestone being processed is foundational. Geological nuances such as impurities and variations in hardness significantly impact the approach to effective crushing.

Particle size plays a pivotal role in the effectiveness of limestone crushing. The distribution of particle sizes within the feed material influences the crushing process. Whether coarse or fine, each particle size category requires a tailored approach to ensure optimal efficiency and the desired end product.

Moisture content in limestone introduces a variable that demands attention. Excessive moisture can hinder the crushing process, leading to equipment clogging and reduced efficiency. Conversely, too little moisture can generate excessive dust. Balancing moisture content is crucial for maintaining operational efficiency.

Choosing the Right Crushing Equipment for Limestone

A. Primary Crushers: Unveiling the Options

Selecting the right primary crusher is a critical decision in the limestone crushing process. Options such as jaw crushers and gyratory crushers each bring unique advantages. Mobile jaw crushers excel in initial breaking, while gyratory crushers offer high capacity. The choice hinges on production requirements and the desired final product specifications.

B. Secondary Crushers: Refining the Process

Once the primary crushing phase is complete, secondary crushers step in to refine the process. Impact crushers and cone crushers play key roles in achieving the desired particle size distribution. Secondary crushers work in tandem with primary crushers to ensure optimal efficiency in the limestone crushing circuit.

C. Tertiary Crushers: Fine-Tuning the Output

Tertiary crushers add the finishing touch to the limestone crushing process. These limestone crushers, often in the form of vertical shaft impactors (VSIs) or cone crushers, focus on producing fine aggregates. Tertiary crushing is integral to achieving the required gradation for specific applications, such as concrete production.

Implementing Effective Techniques for Limestone Crushing

A. Control of Feed Rate and Distribution

Control over the feed rate and distribution of limestone material is paramount for effective crushing. Maintaining a consistent and controlled feed ensures that the crushing equipment operates at optimal levels. Variations in feed rate can lead to inefficiencies and impact the overall process.

B. Crushing Chamber Optimization

Optimizing the crushing chamber configuration is a strategic step. Tailoring the chamber to the characteristics of the limestone feed material enhances the efficiency of the crushing process. Factors such as chamber design, liner profiles, and the selection of wear parts contribute to achieving the desired crushing outcomes.

C. Maintenance Protocols for Sustained Efficiency

Efficient limestone crushing extends beyond the initial operation. Implementing rigorous maintenance protocols is essential for sustained efficiency. Regular inspections, lubrication, and timely replacement of wear parts contribute to prolonged equipment life and sustained crushing performance.

In conclusion, effective limestone crushing is a nuanced process requiring a thorough understanding of limestone properties, appropriate equipment selection, and the implementation of precise techniques. By addressing geological variations, choosing suitable crusher plants for sale, and adhering to meticulous operational and maintenance practices, the process unfolds with analytical precision, ensuring optimal results in limestone crushing applications.

Granite Material Breakdown: How Composition, Hardness & Moisture Affect Crusher Configuration

The crushing efficiency of granite—one of nature's most challenging construction materials—depends on a precise alignment between equipment configuration and the stone's inherent characteristics. Unlike uniform manufactured materials, granite presents crushing operations with a complex matrix of mineral composition, structural hardness variations, and moisture content that collectively demand customized processing solutions. Understanding these material properties enables operators to optimize granite crusher machine selection and settings, transforming what could be a maintenance-intensive process into a streamlined production system.

Mineral Composition Dictates Crushing Mechanics

Granite's heterogeneous blend of quartz, feldspar, and mica creates distinct crushing challenges that influence equipment selection. The quartz content—typically 20-35%—determines the material's abrasiveness and directly impacts wear part selection. Crushers processing high-quartz granite require manganese steel components with 500+ Brinell hardness ratings, while low-quartz varieties permit the use of more economical chromium alloys. The feldspar-to-quartz ratio further influences fragmentation patterns, with higher feldspar content producing more predictable cleavage planes during compression crushing.

The presence of secondary minerals like biotite or hornblende introduces additional considerations. These softer minerals can create cushioning effects in impact crushers, reducing breakage efficiency by up to 15%. Advanced operations now employ x-ray fluorescence (XRF) analyzers to characterize feed material in real-time, automatically adjusting crusher parameters to compensate for compositional variations throughout the deposit.

Hardness Variability and Crusher Response

Granite's Mohs hardness range of 6-7 masks significant micro-scale variations that affect crushing dynamics. Point load testing reveals localized hardness fluctuations up to 30% within single blocks, necessitating crushers with adaptive control systems. Modern cone crushers address this through hydraulic adjustment mechanisms that modulate the closed-side setting based on real-time power draw monitoring, maintaining consistent product size despite material inconsistencies.

The fracture toughness of granite—typically 2-3 MPa√m—demands specific crushing chamber geometries. For jaw crushers, a steep nip angle (22-26°) combined with aggressive toggle kinematics proves most effective in initiating fractures. Impact crushers require rotor speeds of 45-55 m/s to achieve proper particle liberation in hard granite varieties, with slower speeds reserved for weathered or partially decomposed material. These specifications often add 15-20% to crusher costs but extend component life by 40-60% in granite applications.

Moisture Content's Hidden Influence

While granite is generally considered a low-porosity material, surface moisture absorption of 0.5-1.5% can dramatically alter crushing performance. Damp granite exhibits increased cohesion that leads to chamber packing and reduced throughput in compression mobile jaw crushers. This phenomenon explains why operations in humid climates often experience 10-15% capacity reductions during rainy seasons unless countermeasures are implemented.

Modern solutions include crusher feed systems with integrated moisture sensors that trigger pre-crushing drying cycles when thresholds exceed 0.8%. Some advanced impact crushers now feature heated grinding chambers that maintain surface dryness during processing, eliminating the sticky material buildup that traditionally required frequent shutdowns for cleaning. These moisture mitigation systems typically represent 5-8% of total plant costs but prevent up to 30% of unplanned downtime in tropical operating environments.

The most successful granite crushing operations treat material analysis as an ongoing process rather than a one-time evaluation. Continuous monitoring of composition shifts, hardness gradients, and moisture variations enables dynamic crusher adjustments that maintain optimal performance throughout the deposit's life cycle. This data-driven approach transforms granite from a challenging material into a predictable resource, with properly configured crushers consistently achieving 90-95% of their theoretical maximum performance levels. The difference between adequate and exceptional granite processing lies in recognizing these material characteristics and responding with precisely engineered crushing solutions.

Concrete Crushing in the 21st Century: Mobility, Versatility, Profitability

The concrete crushing industry has undergone a quiet revolution in recent years, shedding its image as a simple waste management service to become a sophisticated materials recovery operation. Modern mobile crushing plants now combine military-grade mobility with space-age sorting technology, turning demolition sites into urban quarries that produce premium recycled aggregates. This evolution has created profit opportunities where only disposal costs existed before, fundamentally changing the economics of construction waste management.

Unshackled Operations: The Mobile Advantage

Today's track-mounted concrete crusher for sale have liberated operators from the tyranny of fixed locations. With setup times measured in minutes rather than days, these self-contained units can move between multiple job sites in a single week—a capability that transforms idle equipment into revenue generators. The latest generation features hybrid power systems that eliminate the need for external electricity, while compact designs navigate urban job sites with just 2.5 meters of clearance.

This mobility creates novel business models. Contractors now offer on-demand crushing services, deploying units to construction sites as needed rather than maintaining dedicated equipment. Some innovative operators have developed mobile crushing "pop-up yards" that follow major infrastructure projects, processing concrete waste into saleable aggregate just as new demand for base material emerges. The ability to process material at its source reduces trucking costs by up to 70%, a savings that flows directly to the bottom line.

Intelligent Crushing: From Waste to Value-Added Products

Modern plants do more than reduce particle size—they transform debris into engineered materials. Advanced sorting systems using AI-powered cameras and electromagnetic separators achieve 98% purity in recycled aggregate, removing rebar, plastics, and contaminants that once limited marketability. Variable-speed mobile impact crushers with adjustable aprons can produce everything from DOT-spec road base to fine sands for new concrete mixes.

The profitability leap comes from product diversification. A single mobile plant can now output multiple graded materials simultaneously, with some units featuring split-conveyor systems that separate fines from coarse aggregate during processing. This allows operators to capture value across market segments—selling premium aggregates to ready-mix plants while moving larger sizes to road construction projects. The ability to adjust product specs on-the-fly in response to market demands creates pricing power unheard of in traditional crushing operations.

The New Profit Calculus

When analyzing modern concrete crushing economics, the numbers tell a compelling story. Mobile units achieving 300 tons per hour can generate $12,000-$18,000 daily in revenue at typical recycled aggregate prices. With diesel consumption as low as 5 gallons per hour and minimal labor requirements, operating margins often exceed 60%—figures that rival tech startups rather than traditional construction services.

The financial advantages extend beyond direct sales. Many municipalities offer diversion credits for recycled construction materials, while LEED-certified projects pay premiums for sustainable aggregates. Forward-thinking operators have developed closed-loop systems where they crush concrete for developers, then sell back the recycled product for new construction—capturing value on both ends of the transaction.

As urban construction booms and sustainability mandates tighten, mobile crushing plant has evolved from a niche service to a core profit center. The combination of military mobility, space-age sorting, and razor-sharp operational economics has created an industry where the most successful operators think like tech companies—leveraging data, flexibility, and innovation to turn yesterday's waste into tomorrow's building materials. In the process, they're rewriting the rules of construction materials supply chains.
